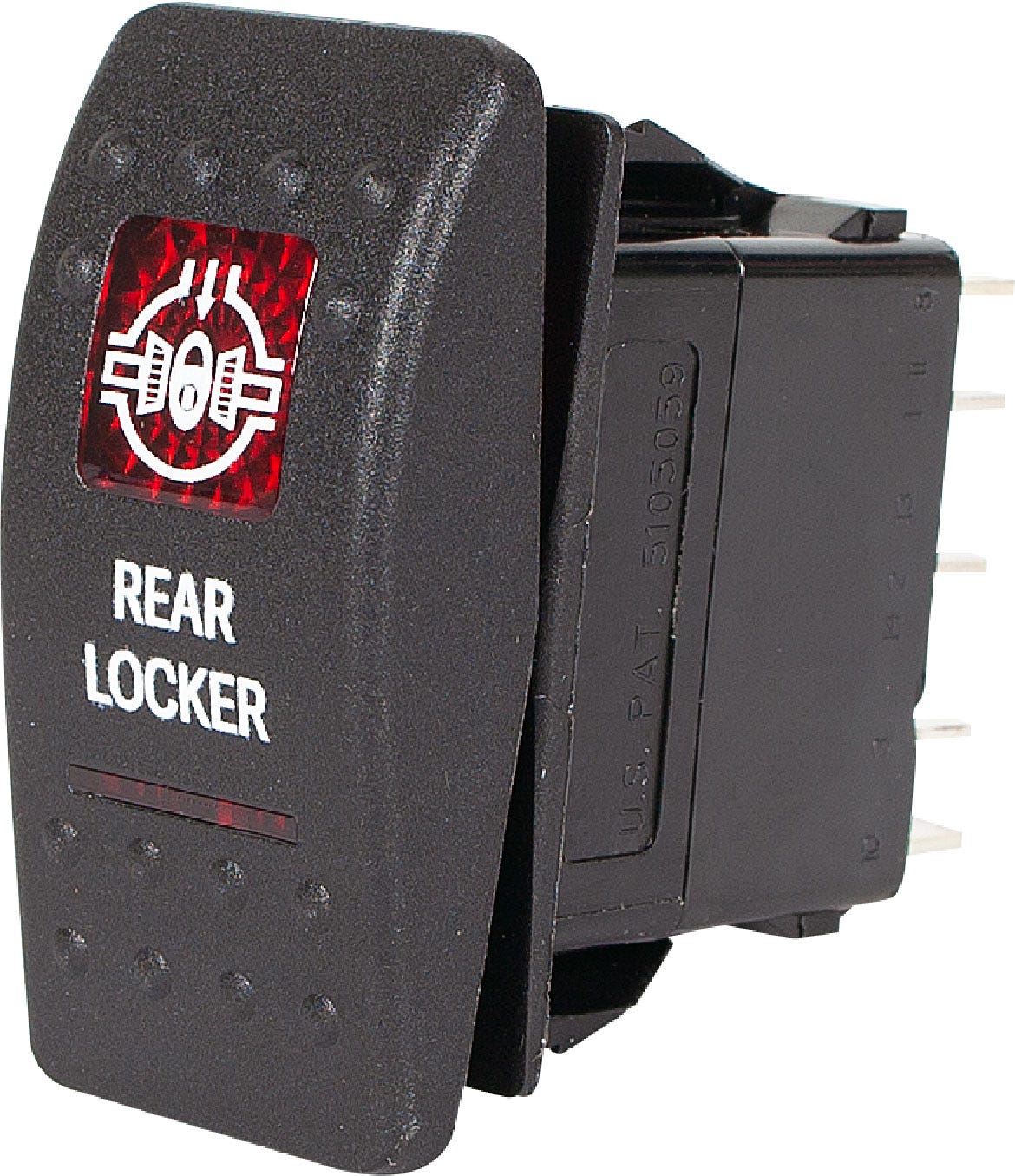

Rear Toyota E-Locker Switch Low Range Offroad

2 sold in last 8 hours
Low Range Offroad
HWFZ_DIY-ELSR
Out of stock
Lockers
$27.71
Wiring your Toyota Electric E-Locker? We make it easy for you with these back-lit Locker specific...
Size Guide
customers are viewing this product
Front Toyota E-Locker Switch Low Range Offroad
Front Toyota E-Locker Switch Low Range Offroad
$27.71
1986-1995 Suzuki Samurai 1.3L Main Bearing Set .020 Inch Low Range Offroad
1986-1995 Suzuki Samurai 1.3L Main Bearing Set .020 Inch Low Range Offroad
$30.45
Rear Toyota E-Locker Switch Low Range Offroad
Description

Wiring your Toyota Electric E-Locker? We make it easy for you with these back-lit Locker specific rocker switches. There is a lot of misinformation surrounding the operation of Toyota E-locker motors, including a popular belief that they can not be operated by simple switches.

We have used DPDT (Double Pole Double Throw) switches for years on these lockers and they work great. We like these switches because they make your dash look clean!

Specifications:

  • Rear Toyota E-Locker Switch
  • DPDT Momentary ON/OFF/ON momentary switch.
  • Single independently wired incandescent light.
  • No rear barrier between terminals.
  • Rated 20A at 12V
  • Rear Locker marking
  • Mounting hole should be .830 inch x 1.45 inch
  • Can be used in panels up to .25 inch thick

Please note that these switches are meant to be wired independently from the factory Toyota wiring. They are not meant for use with the factory e-locker controller. You will need the short harness to the differential, available here at Low Range. Usually, our customers use 6 lead wire available at trailer supply stores and splice into the factory differential harness.

We normally offer 8 pin switches. Depending on availability, our switches may have 10 pins on the back. The extra two pins are on the bottom and can be used for an extra light by wiring power and ground.
