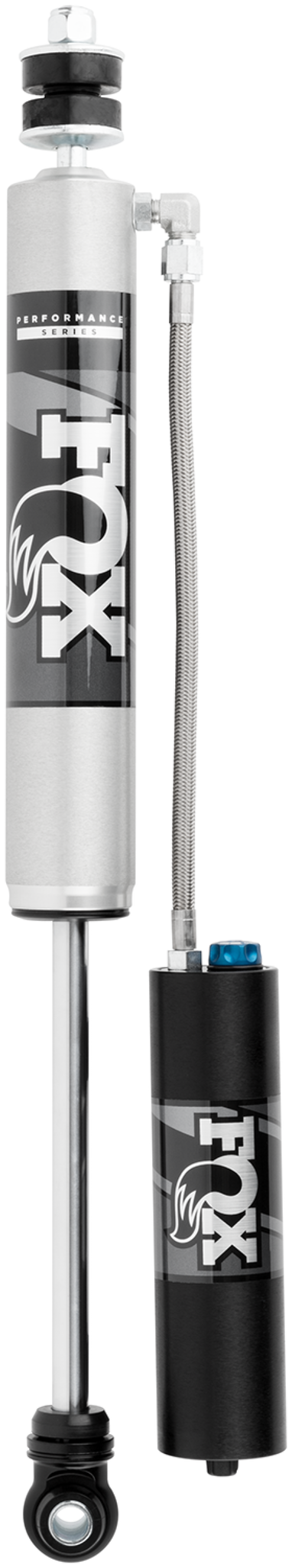

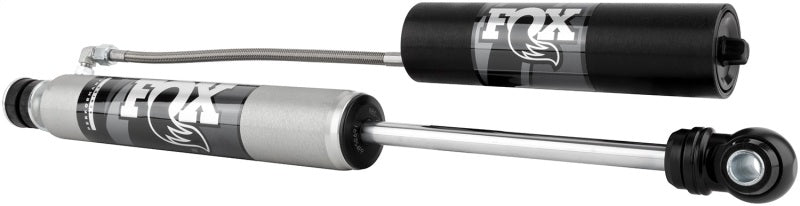

FOX 2.0 PERFORMANCE SERIES SMOOTH BODY REMOTE RESERVOIR SHOCK | 985-26-161

Manufacturer: Fox Shocks

Part # FOX98526161 / 985-26-161

Vehicle Fitment:
2017 - 2024 Ford Superduty F250 with 0" - 1.5" Suspension Lift
2017 - 2024 Ford Superduty F350 with 0" - 1.5" Suspension Lift

Vehicle Position: Front

Quantity: 1 Shock

Description:
The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Specs
Body: 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
Body Plating: Clear-anodized for a durable finish
Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft: 5/8" hard chrome plated heat-treated alloy steel
Piston: Race-developed high-flow piston design
Valving: Application specific valving to maximize performance
Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
Bushings: Quiet nitrile rubber allows for increased suspension articulation

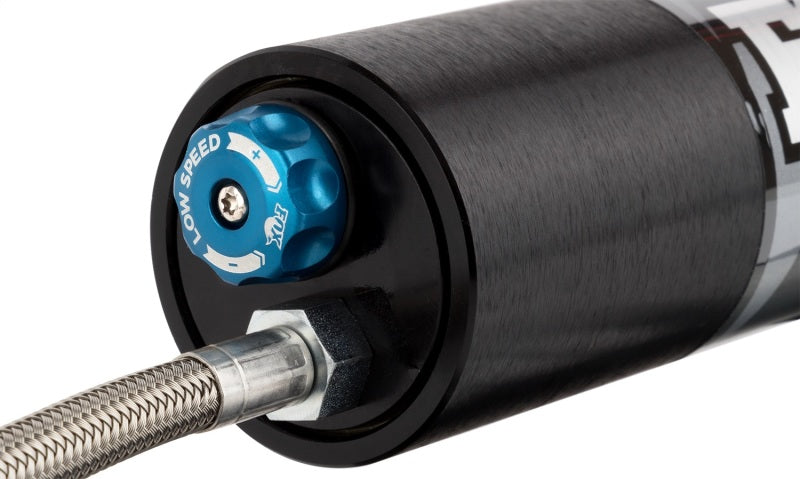

Adjuster Type: LSC - Low Speed Compression
Extended: 22.37
Compressed: 13.75
Travel: 8.620

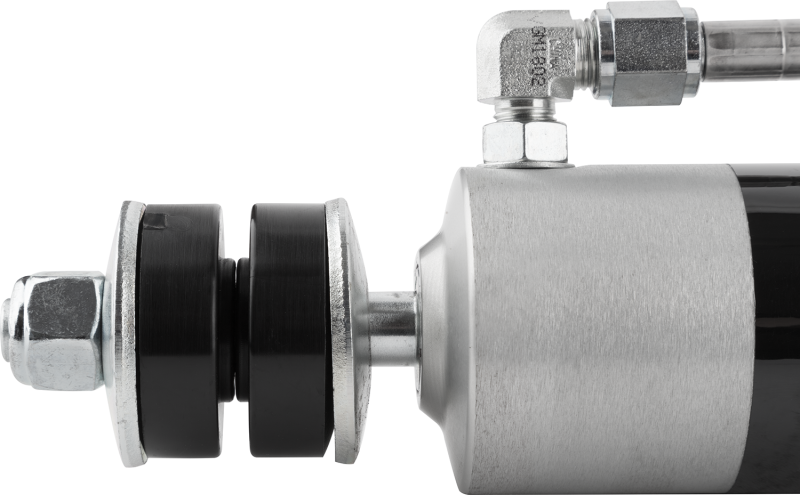

Top Mount: Stem

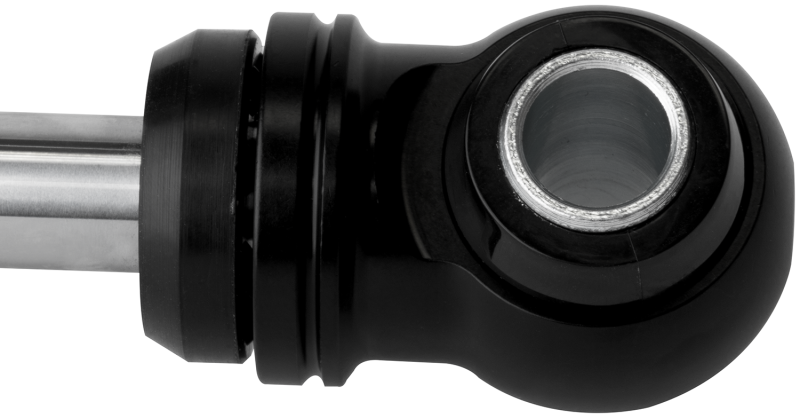

Bottom Mount: Eyelet

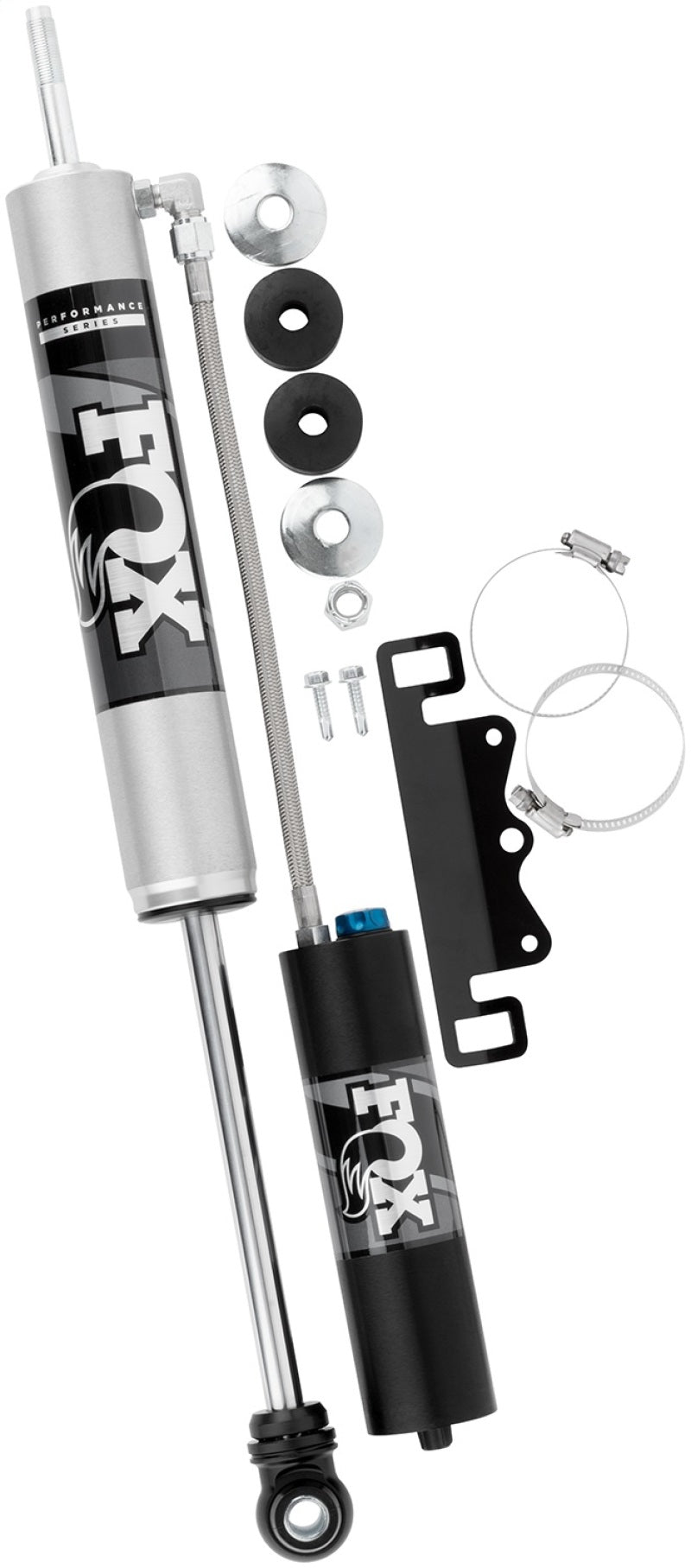

Fitment notes: Includes Universal Reservoir Clamp
