FOX 2.0 PERFORMANCE SERIES SMOOTH BODY IFP SHOCK | 982-24-760

Manufacturer: Fox Shocks

Part # FOX98224760 / 982-24-760

Vehicle Fitment:
2004 - 2020 Ford F150 4x4 Rear with 4" - 6" Suspension Lift

Vehicle Position: Rear

Quantity: This listing is for one individual shock absorber, If you require a pair please select Qty 2.

Description:
Upgrade the on-road comfort and off-road control of your 2004-2020 Ford F-150 or 1999-2016 F-250/F-350 Super Duty to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.
FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Specs
PART NUMBER: 982-24-760
FEATURES: Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas; Black Anodized CNC Machined Aluminum Components
SERIES: Performance
TRAVEL: 13.1in.
REAR LIFT HEIGHT: 4-6in.
BODY: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
BODY PLATING: Clear-anodized for a durable finish
COMPONENTS: Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT: 5/8" hard chrome plated heat-treated alloy steel
PISTON: Race-developed high-flow piston design
VALVING: Application specific valving to maximize performance
SEALS: Redundant sealing pack system main seal, wiper seal, scraper seal
EXTENDED LENGTH: 33.85in.
COMPRESSED LENGTH: 20.75in.

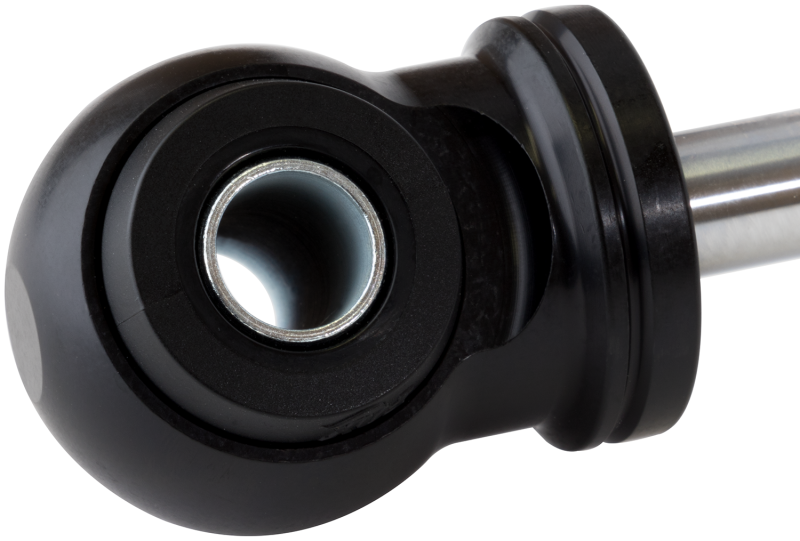

TOP MOUNT: ES1 / Eyelet
BOTTOM MOUNT: ES1 / Eyelet
