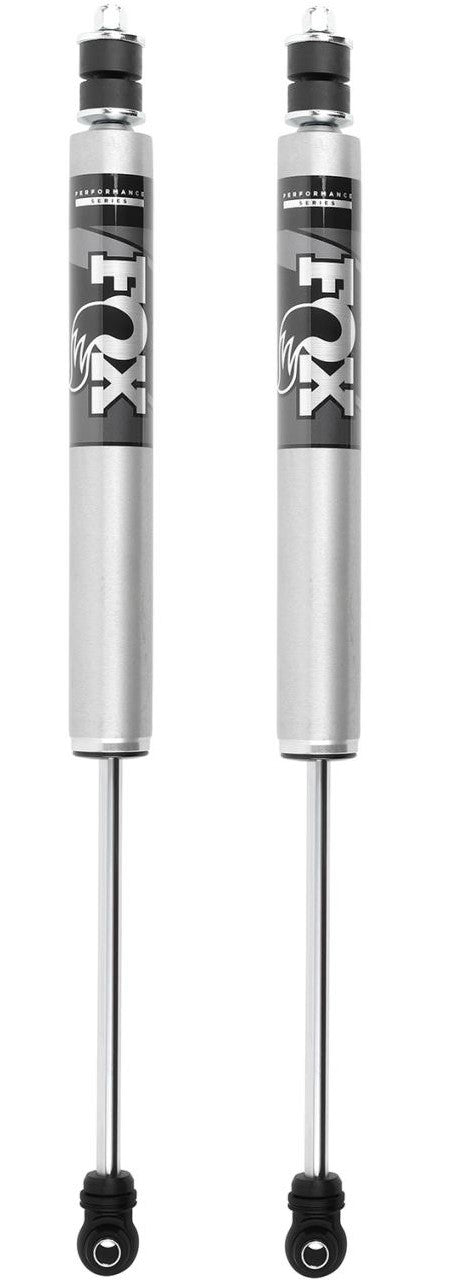

FOX 2.0 Performance Series Coilover / Shock Package

FOX 2.0 Performance Series Coilover / Shock Package | 1996 - 2002 Toyota Landcruiser Prado 90

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Front Specifications

FEATURES : Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas; Black Anodized CNC Machined Aluminum Components

SERIES: Performance

TRAVEL: 4.89 in.

FRONT LIFT HEIGHT: 0-2 in.

BODY: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

BODY PLATING: Clear-anodized for a durable finish

COMPONENTS: Black-anodized, CNC-machined 6061-T6 billet aluminum

SHAFT: 5/8" hard chrome plated heat-treated alloy steel

PISTON: Race-developed high-flow piston design

VALVING: Application specific valving to maximize performance

SEALS: Redundant sealing pack system main seal, wiper seal, scraper seal

BEARINGS: Large diameter, heavy-duty spherical

EXTENDED LENGTH: 18.49

COMPRESSED LENGTH: 13.6

TOP MOUNT: TM

BOTTOM MOUNT: Eyelet
This Part Fits:

Rear Specifications

FEATURES: Includes Aluminum Reservoir Clamp; Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components

SERIES: Performance

TRAVEL: 8.13 in.

EXTENDED LENGTH: 22.28 in.

COMPRESSED LENGTH: 13.9 in.

BODY: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

BODY PLATING: Clear-anodized for a durable finish

COMPONENTS: Black-anodized, CNC-machined 6061-T6 billet aluminum

SHAFT: 5/8" hard chrome plated heat-treated alloy steel

PISTON: Race-developed high-flow piston design

VALVING: Application specific valving to maximize performance

SEALS: Redundant sealing pack system main seal, wiper seal, scraper seal

TOP MOUNT: Stem Top

BOTTOM MOUNT: Eyelet
