    BDS 5in. Radius Arm Lift Kit, FOX 2.5 Coil-Over Conversion - Performance Elite, 2023 - 2025 Ford Superduty F250 / F350 with 6.7L Powerstroke Diesel

    2 sold in last 8 hours
    BDS Suspension
    BDS2208FPE
    In stock
    Suspension Lift Kit
    $5,545.44
    Built to outperform, upgrade your 23-25 Ford F250/F350 Super Duty diesel powered truck with this 5-inch...
    Size Guide
    $5,545.44
    customers are viewing this product
    JKS J-Venture 3.5in. Suspension Lift Kit | 2018 - 2025 Jeep Wrangler JL Unlimited 4 Door
    JKS J-Venture 3.5in. Suspension Lift Kit | 2018 - 2025 Jeep Wrangler JL Unlimited 4 Door
    $1,208.65 - $4,212.75
    BDS 3in. Radius Arm Lift Kit, FOX 2.5 Coil-Over Conversion - Performance Elite, 2023 - 2025 Ford Superduty F250 / F350 with 6.7L Powerstroke Diesel
    BDS 3in. Radius Arm Lift Kit, FOX 2.5 Coil-Over Conversion - Performance Elite, 2023 - 2025 Ford Superduty F250 / F350 with 6.7L Powerstroke Diesel
    $4,580.59 - $7,020.69
    BDS 5in. Radius Arm Lift Kit, FOX 2.5 Coil-Over Conversion - Performance Elite, 2023 - 2025 Ford Superduty F250 / F350 with 6.7L Powerstroke Diesel
    Leaf Springs / Fox 2.0 Performance Series - $5,545.44
    Description

    Built to outperform, upgrade your 23-25 Ford F250/F350 Super Duty diesel powered truck with this 5-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37" tires.

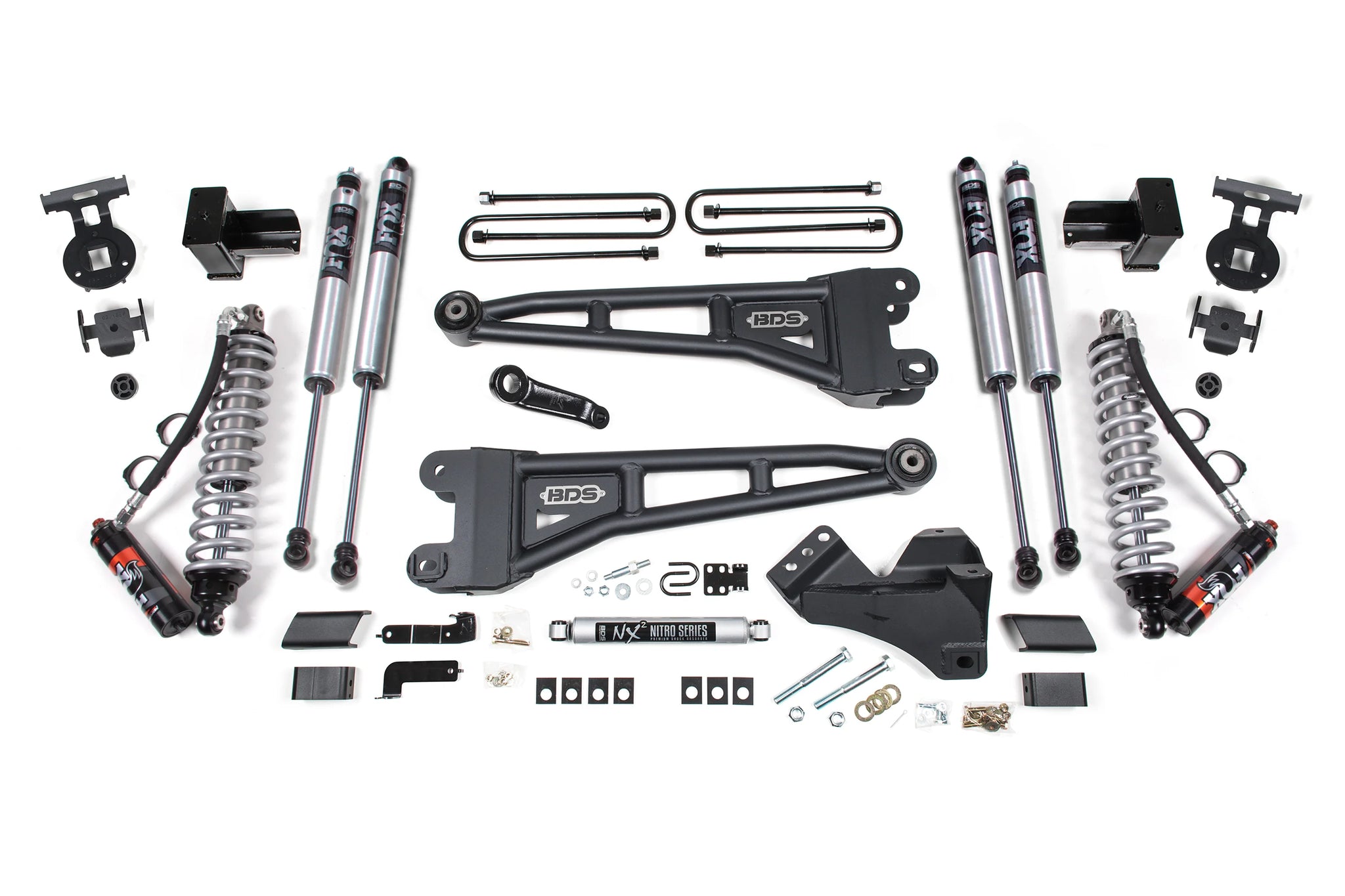

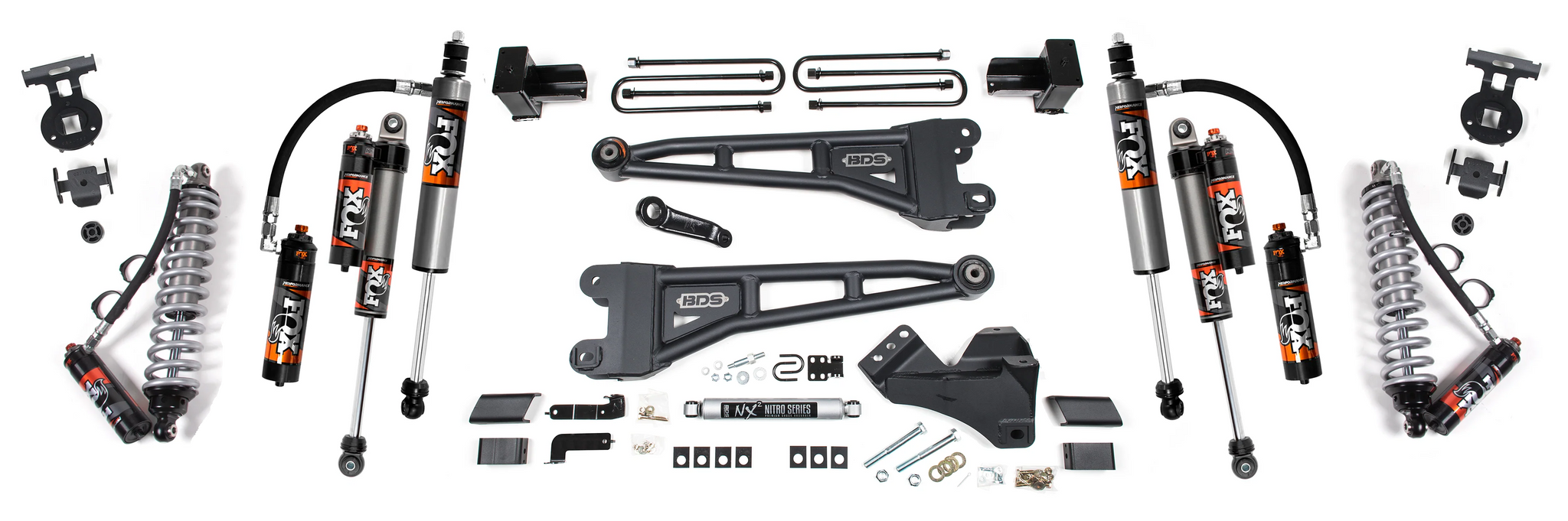

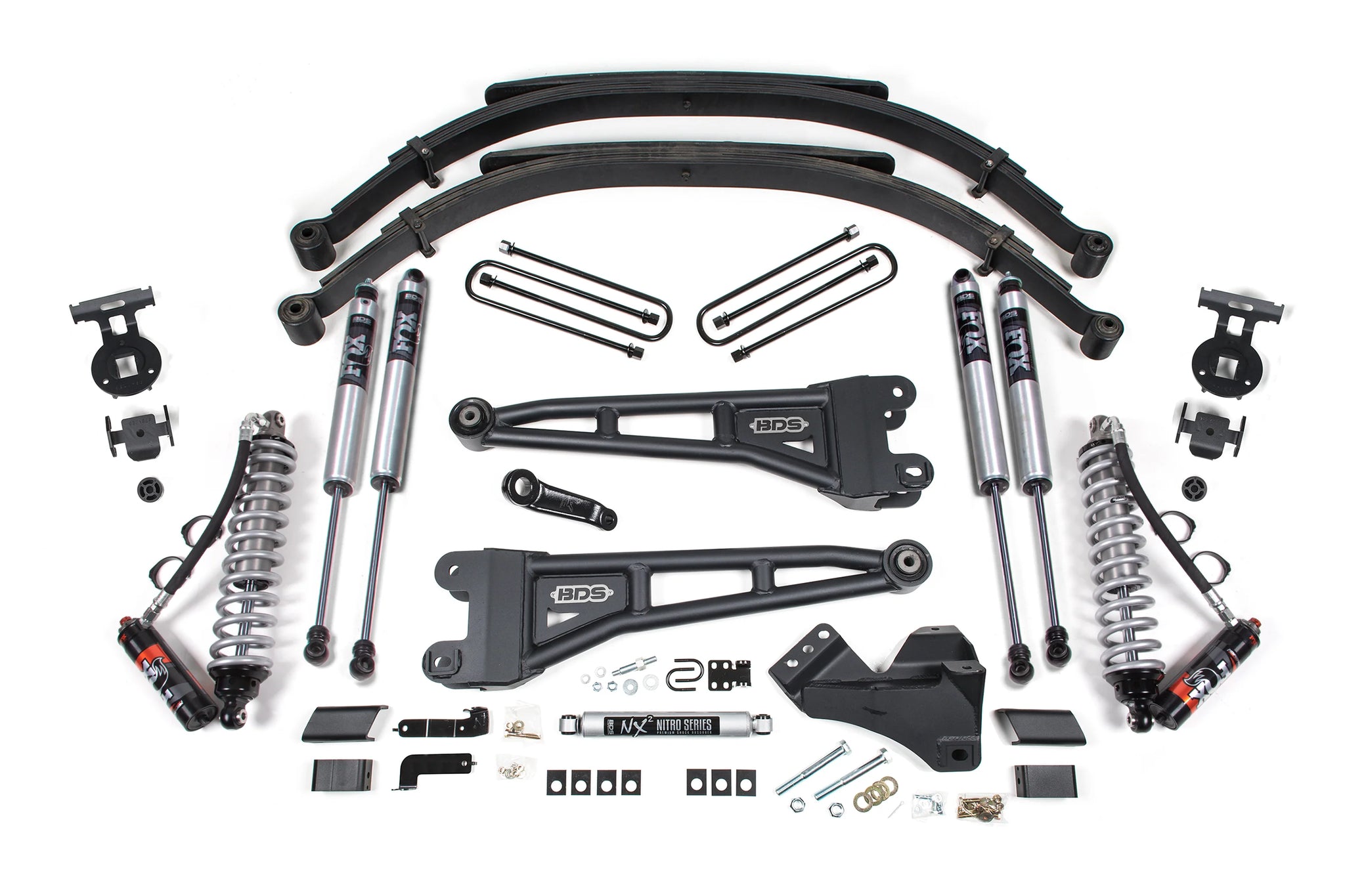

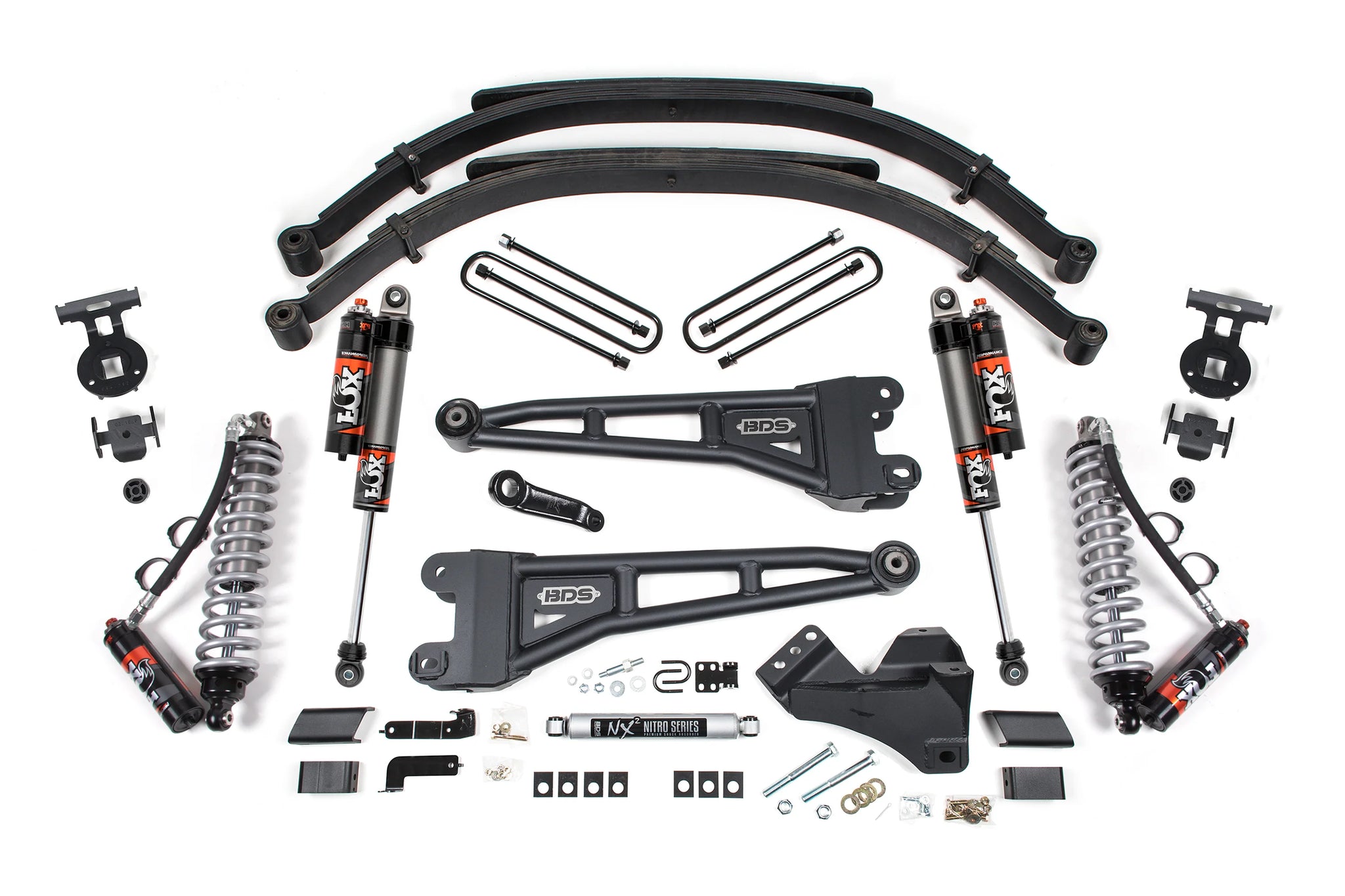

    Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

    In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

    FOX Performance Elite Coil-Over

    FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

    HD Radius Arms

    In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

    Steering Correction

    To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

    Features & Benefits

    • FOX 2.5 Coil-Over mounts in factory coil bucket location
    • Adds additional secondary FOX 2.0 shock for max performance
    • Eibach coil springs ride smooth through the roughest terrain
    • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
    • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
    • Fabricated steel blocks provide level stance from front to rear
    • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

    Recommended Tires & Wheels

    (Trimming may be required)

    • 37 x 12.5 with 17 x 9 and 5 in. Backspace
    • 37 x 12.5 with 18 x 9 and 5 in. Backspace
    • 37 x 12.5 with 20 x 9 and 5 in. Backspace
