BDS1547H
BDS 6" IFS Suspension Lift Kit with BDS NX2 Shocks
Part # BDS1547H
Manufacturer: BDS Suspension
Vehicle Fitment: 2019 - 2023 Ford Ranger 4wd
Lift Height: 6 in.
Click HERE to download installation instructions
Overview

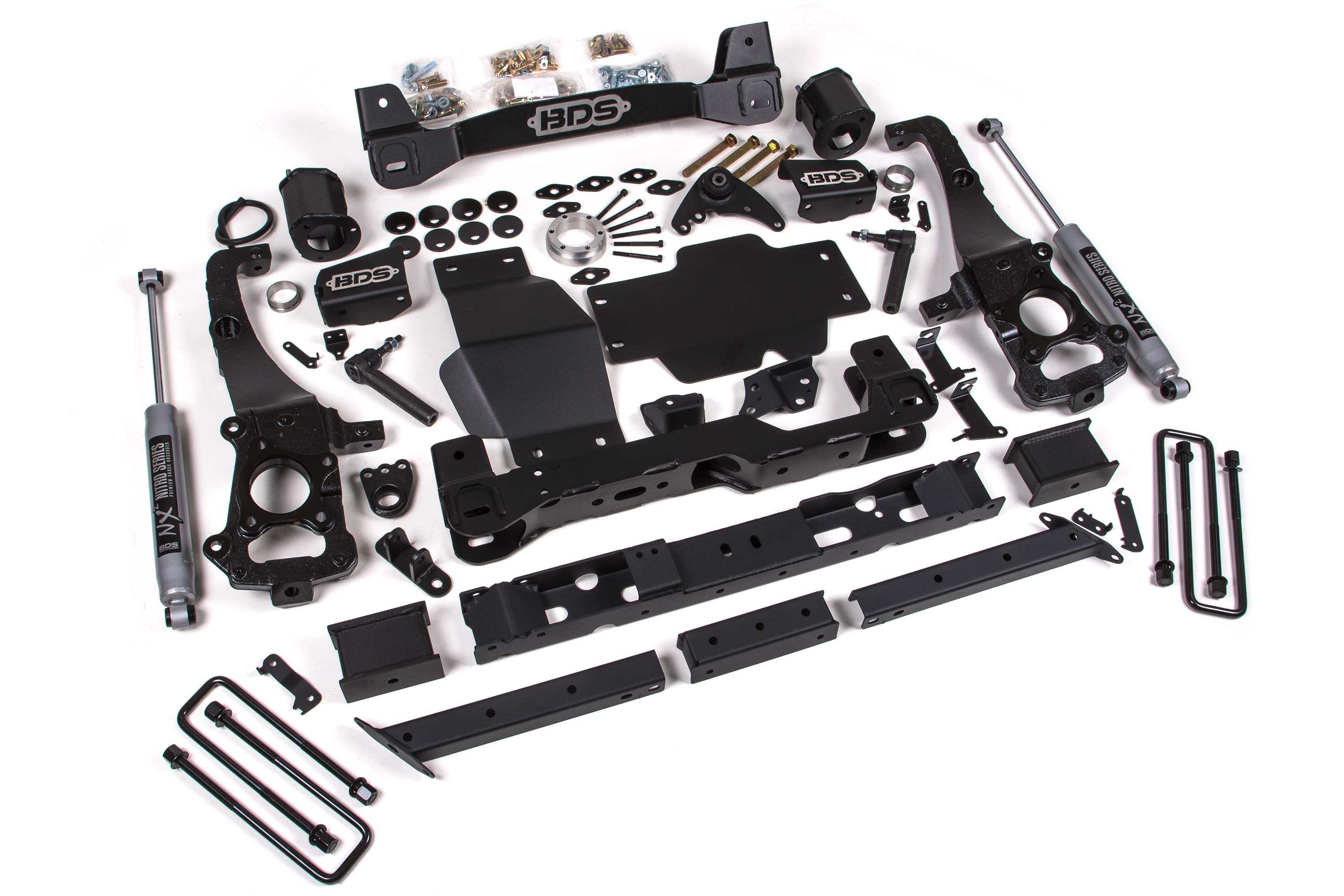

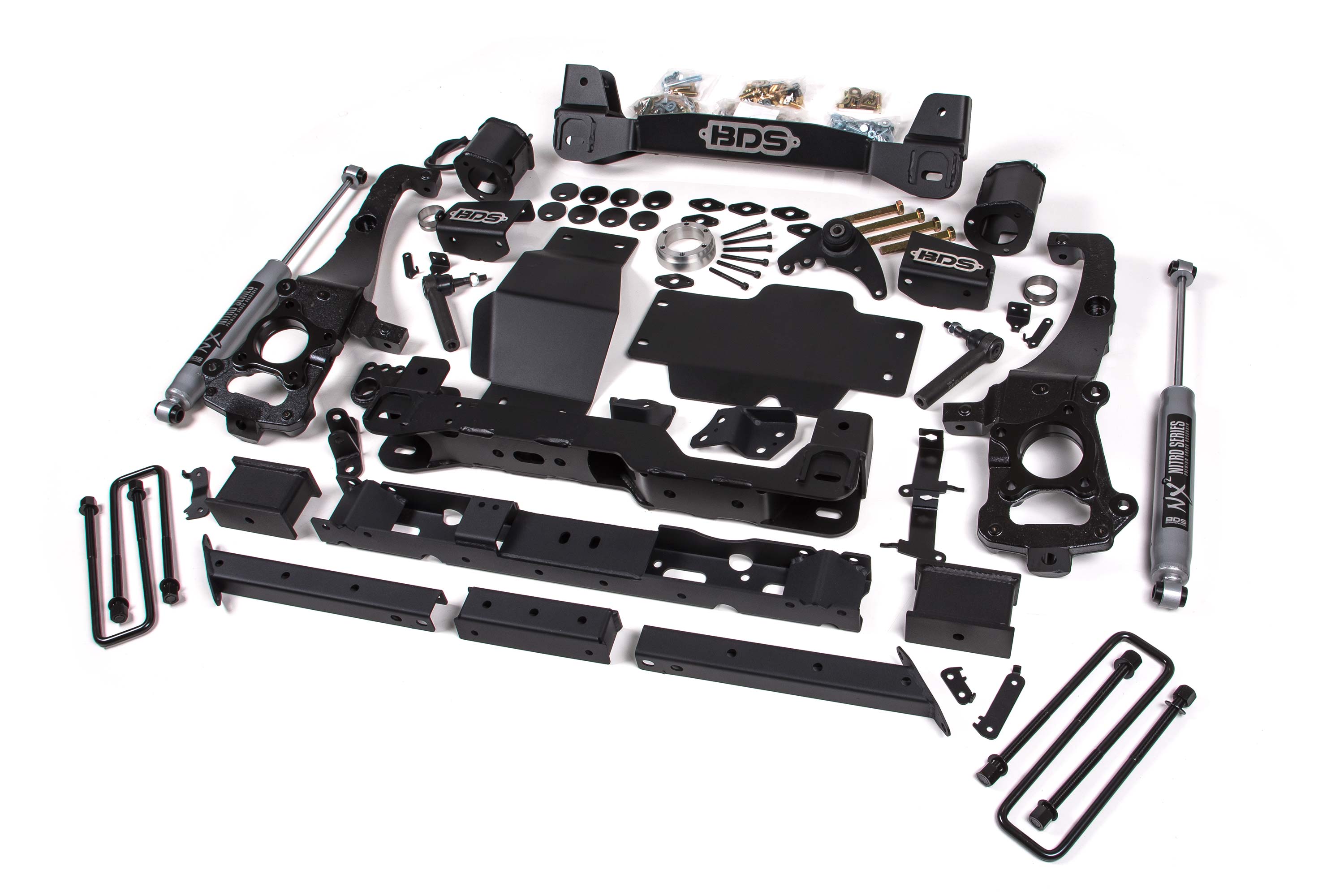

BDS steps up the performance and capability of the 2019-2023 Ford Ranger trucks with 6-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

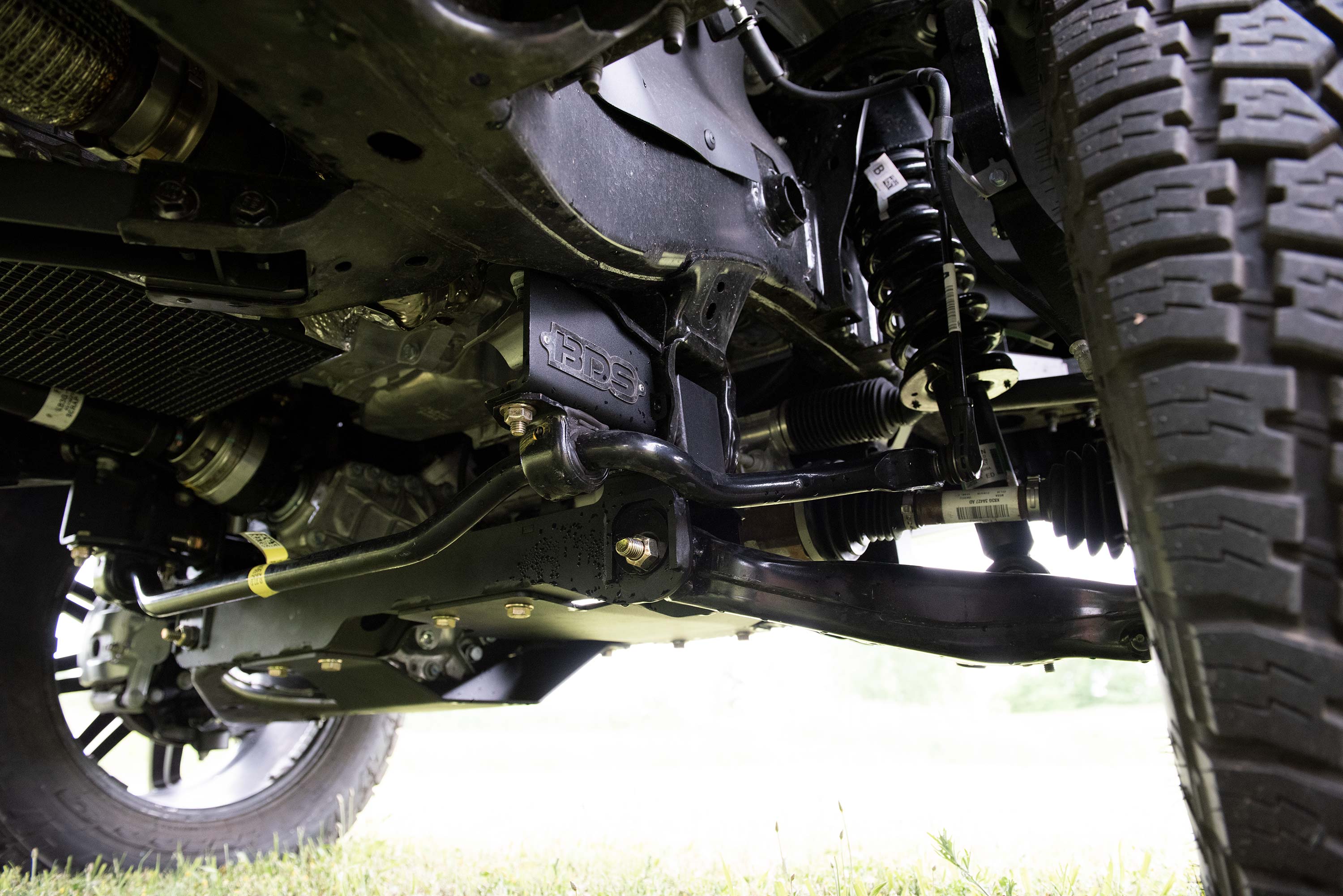

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

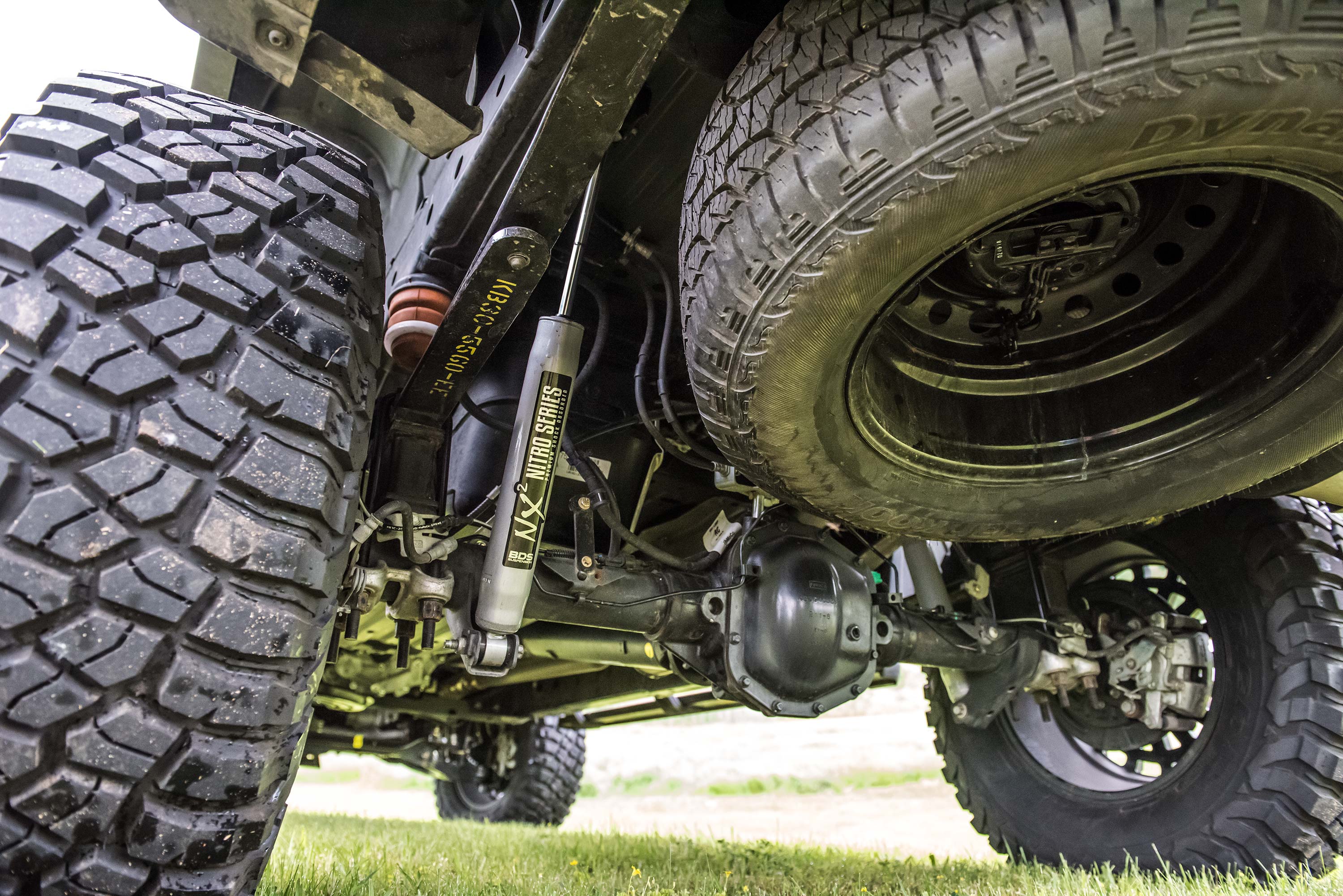

In the rear BDS utilizes a heavy duty replacement transfer case cross-member, high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

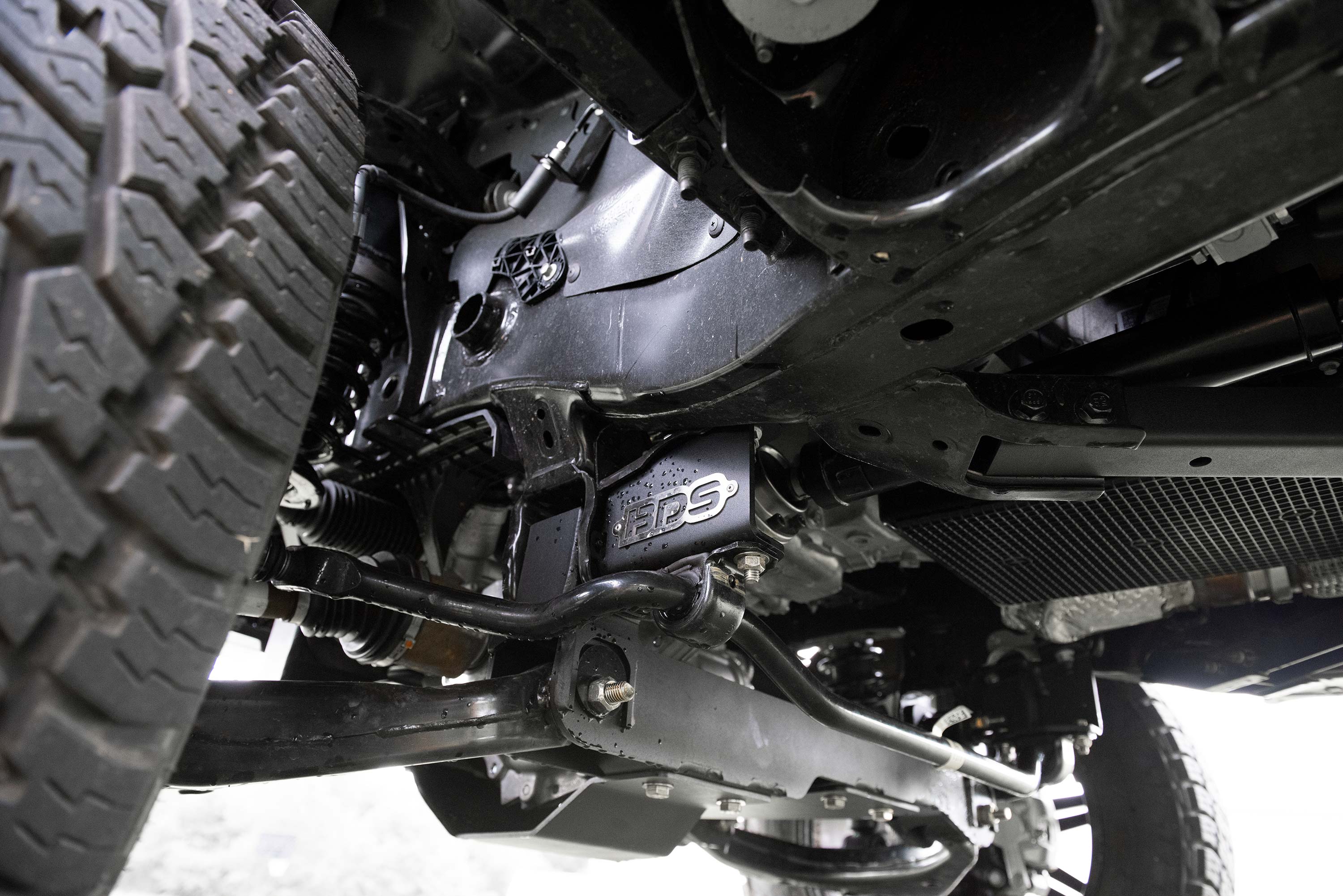

High Clearance Crossmembers

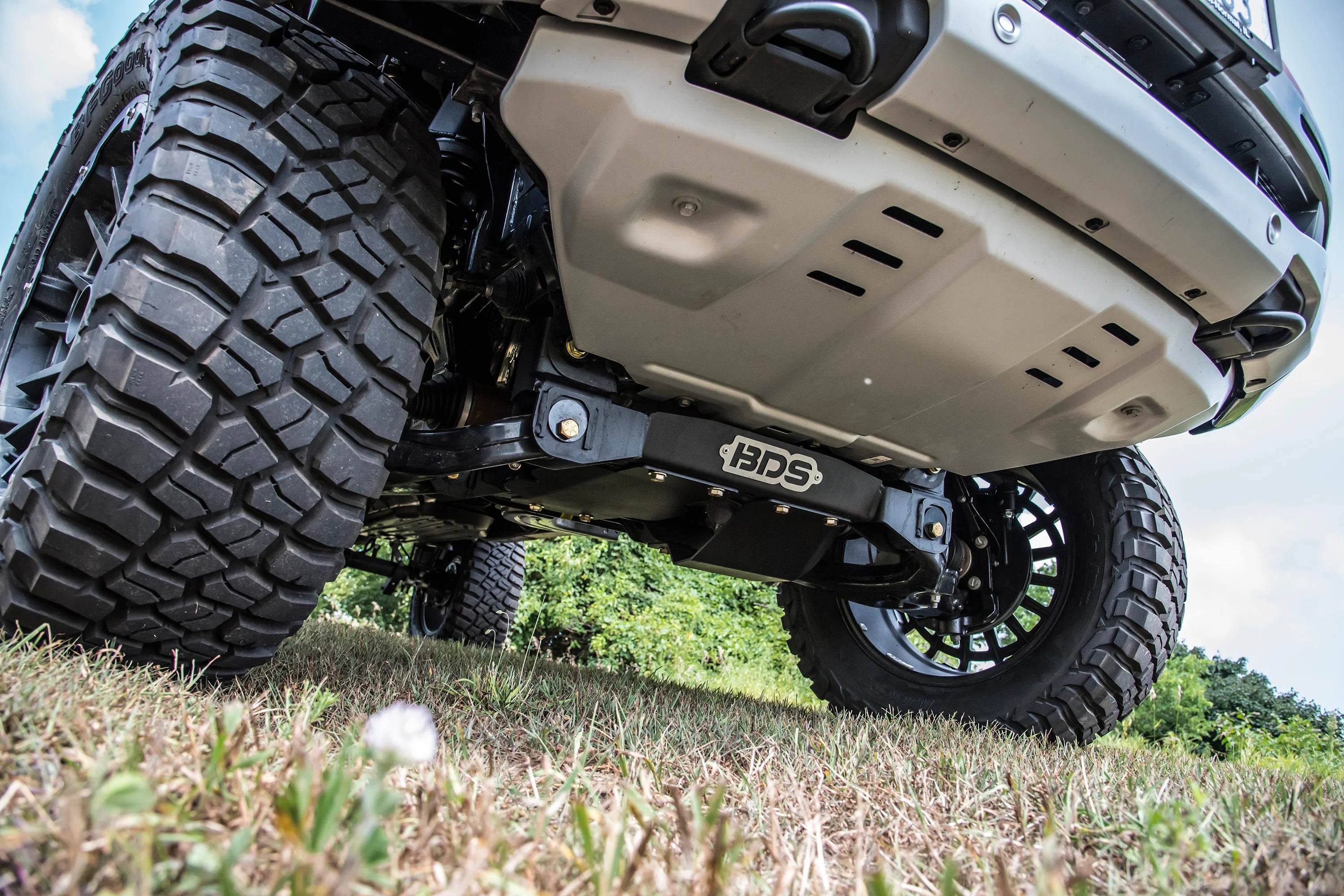

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits:
High clearance crossmembers improve strength and offroad capability.
Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility.
Top mounted strut spacers to provide lift and install easily.
Differential skid plate for improved offroad protection.
Rear lift blocks and u-bolts to lift and level the stance.
Standard NX2 Nitro shocks with vehicle-specific valving for better control.
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road.
Made in USA
Recommended Tires & Wheels
(Trimming may be required)
33 x 12.5 with 17 x 9 and 4.5 in. Backspace
33 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.5 in. Backspace
Technical Notes about OE Knuckle Type
Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.
