Fox Performance Series 2.0 IFP Rear Shock - 985-24-069

Manufacturer: Fox Suspension

Part # FOX98524069 / 985-24-069

Vehicle Fitment:
2012 - 2018 Ford Ranger T6

Vehicle Position: Rear

Lift Height: 0" - 1.5"

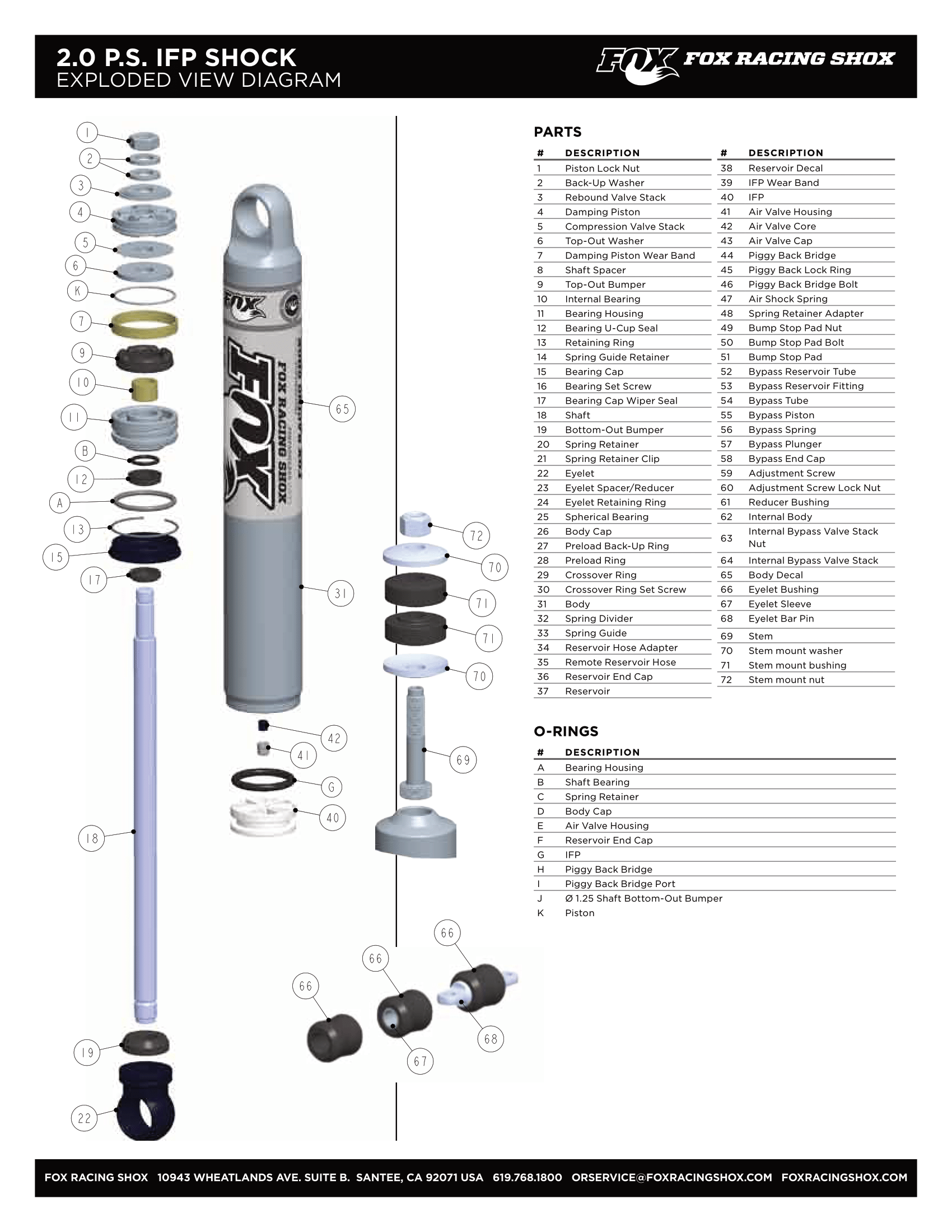

Click HERE to download installation instructions.

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Shock Specifications:
Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating: Clear-anodized for a durable finish
Reservoir: Internal IFP mono-tube reservoir design
Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft: 5/8" hard chrome plated heat-treated alloy steel
Piston: Race-developed high-flow piston design
Valving: Application specific valving to maximize performance
Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing: Large diameter, heavy-duty spherical
Extended Length: 24.82 in. or 630 mm
Compressed Length: 15.7 in. or 399 mm
Travel: 5.14 in. or 231 mm
Top Mount: Eyelet
Bottom Mount: Eyelet
