• Improved strength with fully welded plate steel construction
• CNC machined ball joint cup with improved positioning ideal for use with leveling/lift kits
• High quality greaseable ball joints with a protective cap to keep out dirt/debris
• OE style rubber bushings for durability and maintenance-free operation
• Fully assembled and ready to install

Important Notes:

1. Wheel spec recommendations for proper tire clearance at ball joint - 20x9 w/ max 6" BS

Specifications:

• Bushing Material : Rubber
• Bushings Included : Yes
• Grease Fitting Included : Yes
• Lift Height : 2-3", 4-6"

ZONC2320 Kit Contents

Qty Part

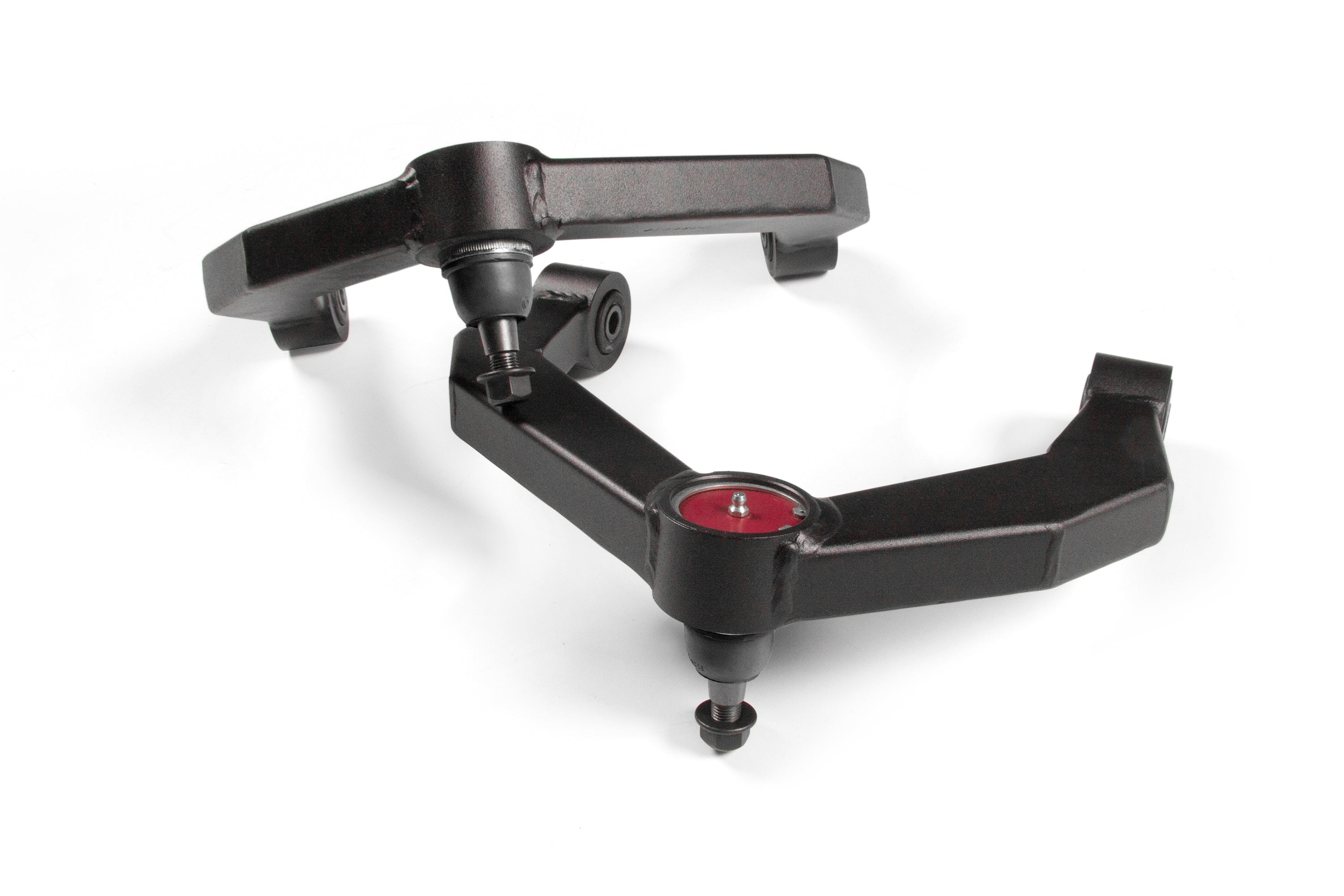

1     DRV Arm Assembly

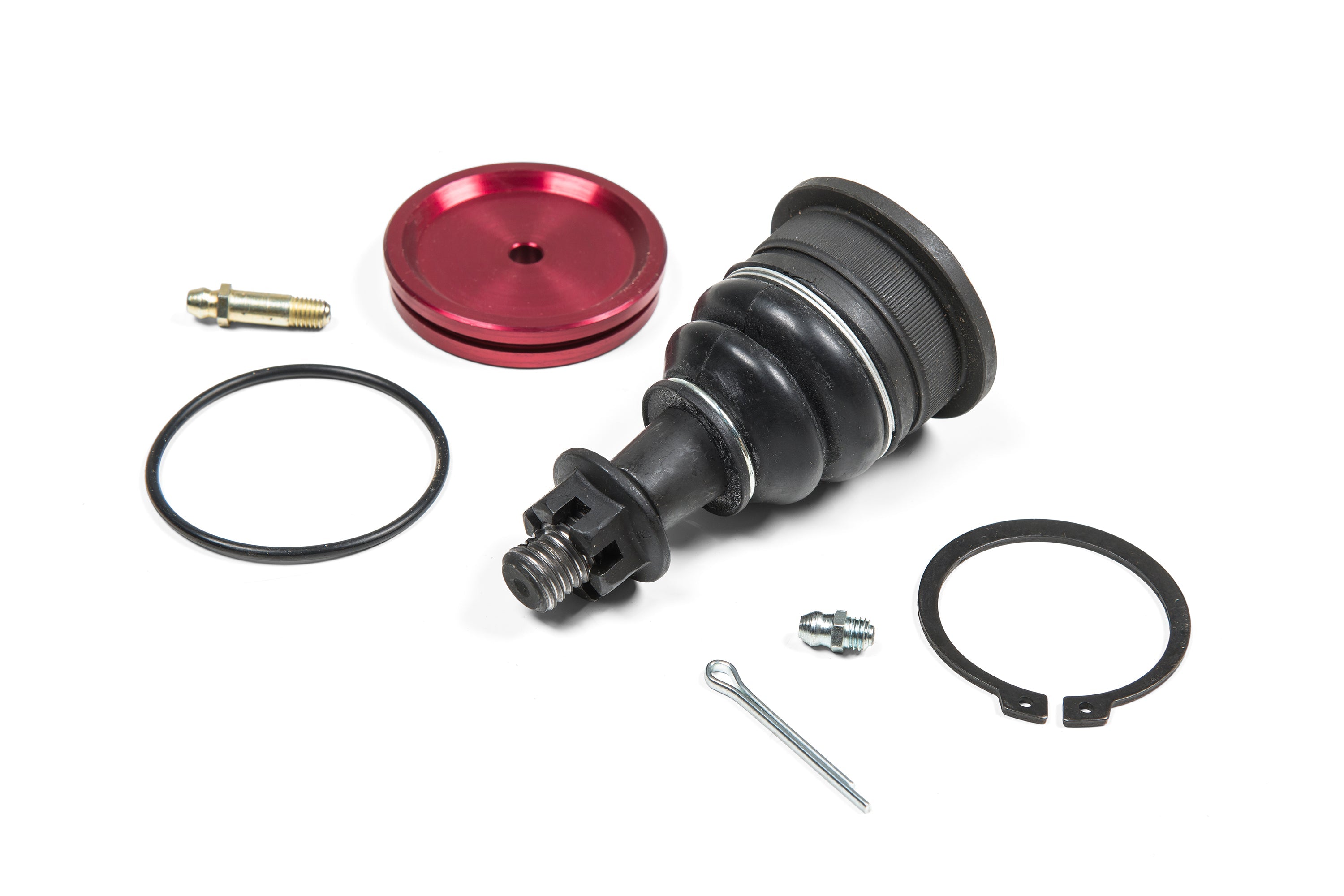

1     HD Ball Joint
2     Rubber Bushing
1     Ball Joint Cap
1     Grease Zerk
1     O-ring
1     PASS Arm Assembly
1     HD Ball Joint
2     Rubber Bushing
1     Ball Joint Cap
1     Grease Zerk
1     O-ring
2     7/8" Differential Spacer Sleeve - Frt
4     1/2" Differential Spacer Sleeve - Rear
4     1/4" Skid Plate Spacer
2     Sway Bar Relocation Brackets
2     Torsion Bar Keys
2     Torsion Bar Key Keeper
1     Bolt Pack 679 - Differential Drop
2     9/16"-12 x 5" bolt
2     9/16"-12 x 5-1/2" bolt
8     9/16" SAE thru hardened washer
4     9/16"-12 prevailing torque nut
1     Bolt Pack 882 - Sway Bar Relcoation and Skid Plates
10   10mm-1.50 x 30mm Bolt, Class 10.9, Clear Zinc
6     3/8" USS Washer, Clear Zinc
4     3/8"-16 x 1-1/4" Bolt, Grade 8, Yellow Zinc
4     3/8" SAE Washer, Yellow Zinc
4     3/8"-16 Prevailing Torque Nut, Yellow Zinc

Vehicle Fitment:
