20-24 Silverado/Sierra 2500/3500 HD 3 Inch Adventure Series OE Key 84634344 With Overloads Fox Adventure Shocks Zone Offroad

Take your new HD to the next level with the 3 Inch Adventure Series Lift Kit from Zone Offroad. Engineered for easy bolt on fitment and improved travel, these 3 Inch Adventure Series Lift Kits bridge that gap between an entry level leveling kit and full IFS lift system offering next level performance without the cost and extensive installation.

The heart of this new system is a pair of heavy duty replacement upper control arms (UCAs) designed to improve range of motion for more suspension travel when wheeling in rough terrain.

These new control arms dwarf the factory units and are built from high strnegth steel, boxed and fully welded with CNC-machined bushing and ball joint cups repositioned to operate in the neutral position at 3 Inch of lift.

They use OE durometer rubber bushings and greaseable OE-style heavy duty ball joints for quiet, reliable operation and superior corrosion resistance to uniball style control arms. Along with the arms, a pair of reindexed cast steel torsion bar keys are supplied up front to lift vehicle. Zone Offroad includes a small differential relocation kit (4WD models only) to correct CV axle operating angles without effecting ground clearance.

The sway bar operating angle is corrected with the use of a pair of relocation brackets allowing for full droop of the suspension and proper clearance. In the rear a 2 block and u-bolt kit is used to create a level to slightly tail high stance.

Rounding out the kit are a set of Nitro gas or FOX adventure series IFP gas shocks at all 4 corners for a smooth ride and impressive performance across any terrain. Take your late model GM 2500HD to the next level with Zone Offroad!
Quick Specs:

• Front Lift Height 3 Inch
• Rear Lift Height 2 Inch
• Material Steel
• Front Lift Method Torsion Key
• Rear Lift Method Fabricated Blocks
• Lift Type Lift Kit
• Wheel Size 20 x 9
• Back Spacing 5-5.75 Inch
• Max Tire Size 35 x 12.5
• Wheel Size 2 20 x 9
• Back Spacing 2 5-6.18 Inch
• Max Tire Size 2 295 / 60
• Wheel Size 3 20 x 9
• Back Spacing 3 5-6.18 Inch
• Max Tire Size 3 285 x 65
• Finish Powdercoat

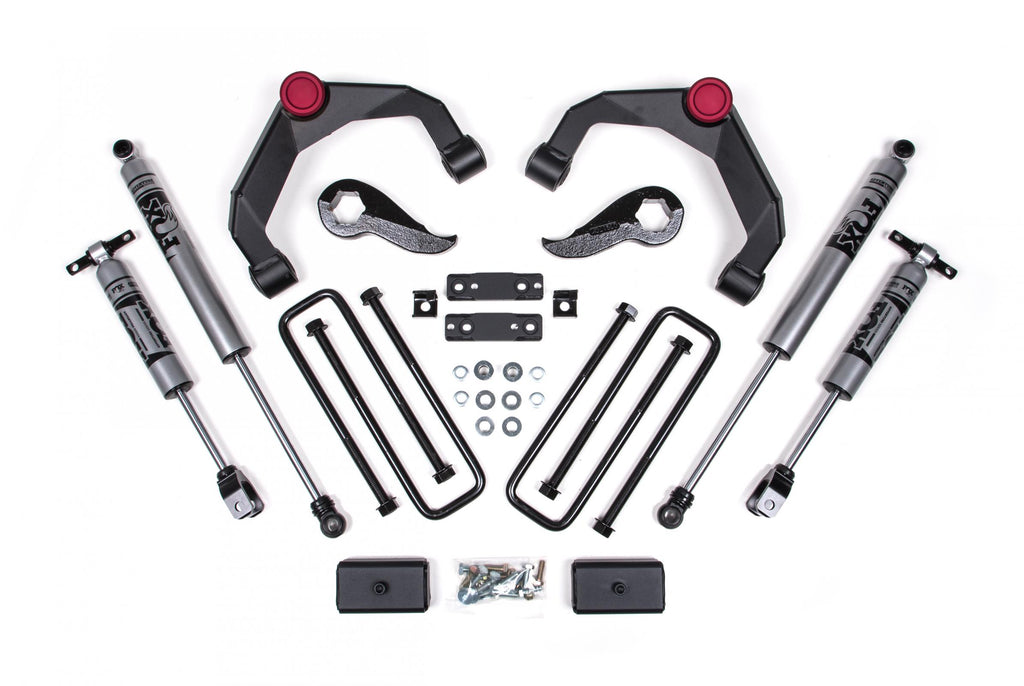

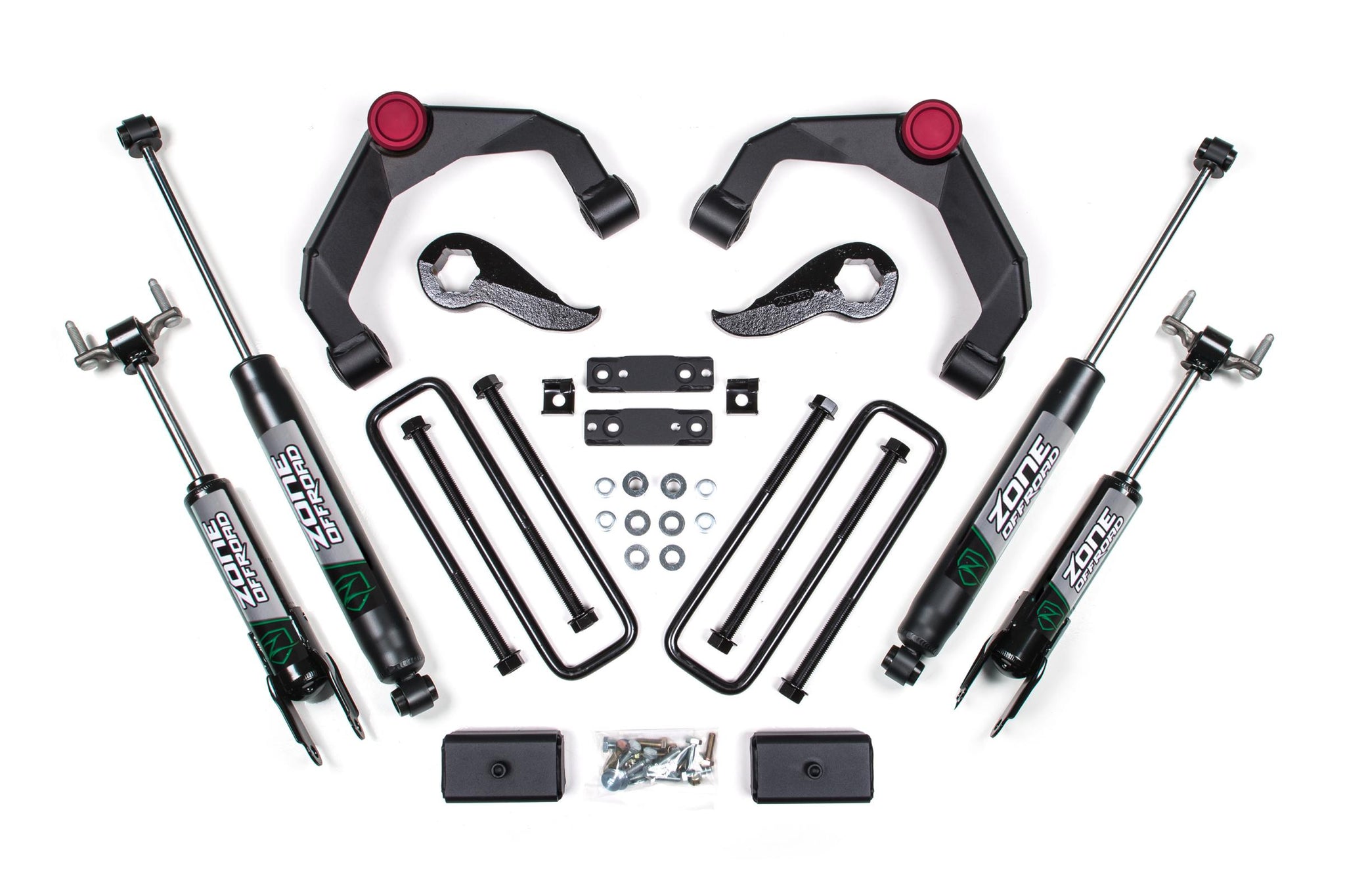

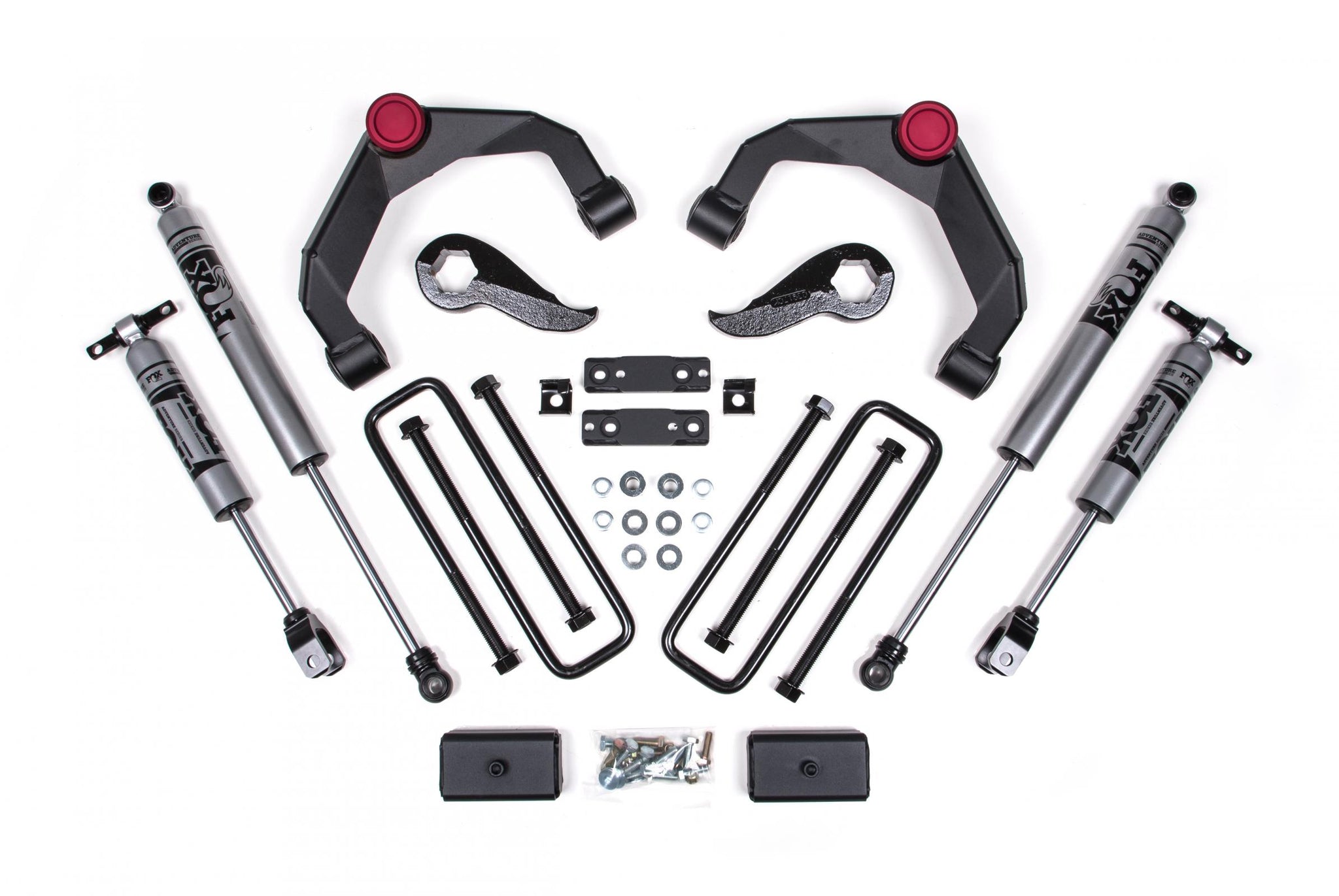

In The Box:

• Rear Lift Block & U-Bolt Kit
• Torsion Bar Keys
• Upper Control Arms
• Sway Bar Relocation
• Differential Relocation

Features:

• High strength UCAs are boxed and fully welded. They are specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
• Cast construction indexed torsion bar keys to provide additional ride height while maximizing ground clearance.
• Front differential relocation brackets to correct CV axle operating angle.
• Sway bar relocation brackets to maintain clearance and proper operating angle.
• 2 Inch rear lift blocks and heavy duty u-bolts to level the stance.
• Nitro series gas or FOX 2.0 adventure series IFP gas shocks to improve performance.
• Maintains ride and handling characteristics with clearance for 35 Inch tires.
• Allows for improve offroad performance with more droop travel.

Kit Components:

• FOX98450603 Fox Adv Shock 19.31 x 13.22 x 2-BP/Clev 2 810156368325
• FOX98450757 Fox Adv Shock 27.95 x 17.36 x 2-EB1/EB1 2 810156368110
• ZONC1208 2011-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 2 Inch Rear Block w/ ovlds 1 711745596481
• ZONC2320 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD UCA Box Kit (OE Key 84634344) 1 711745605893
