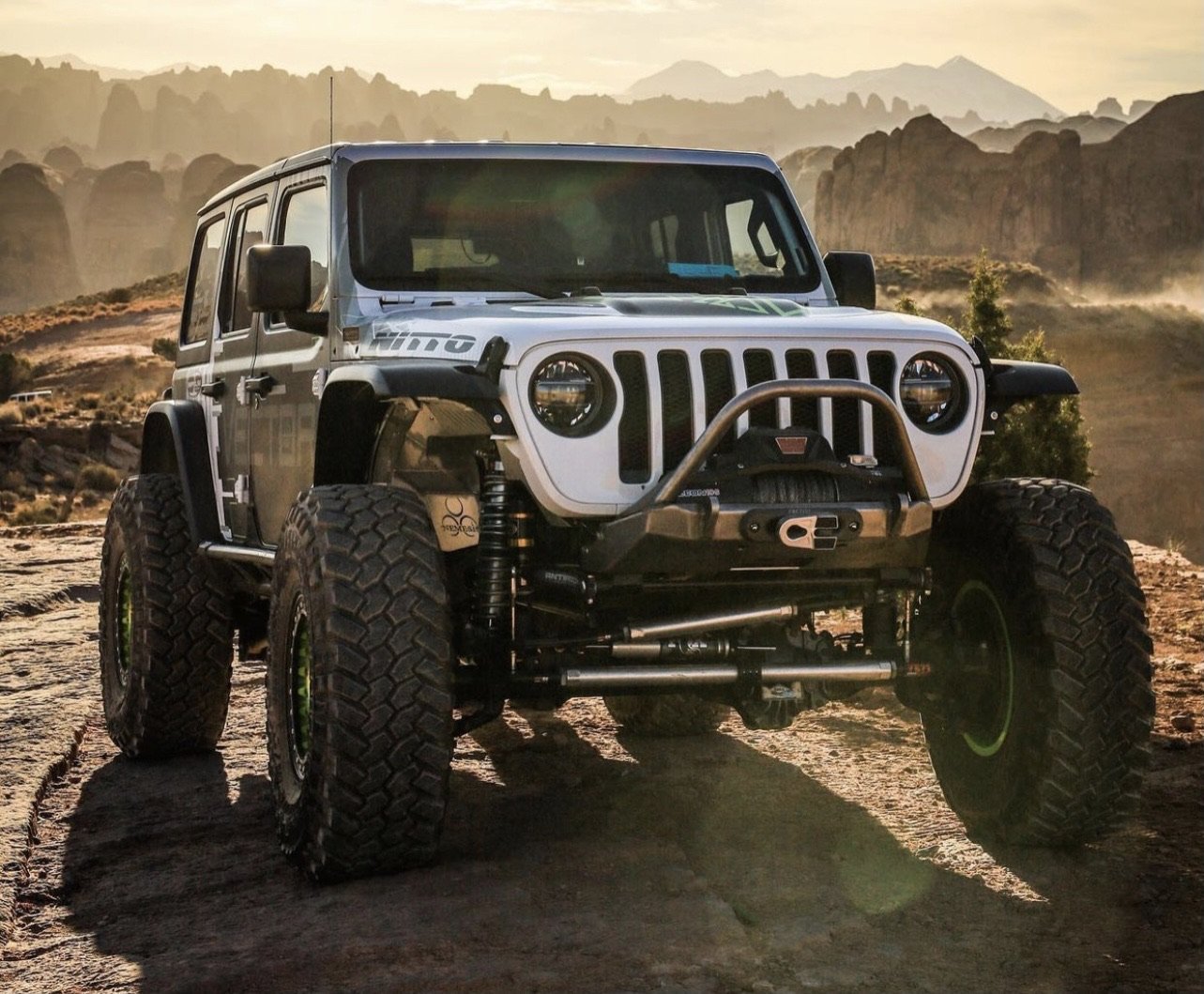

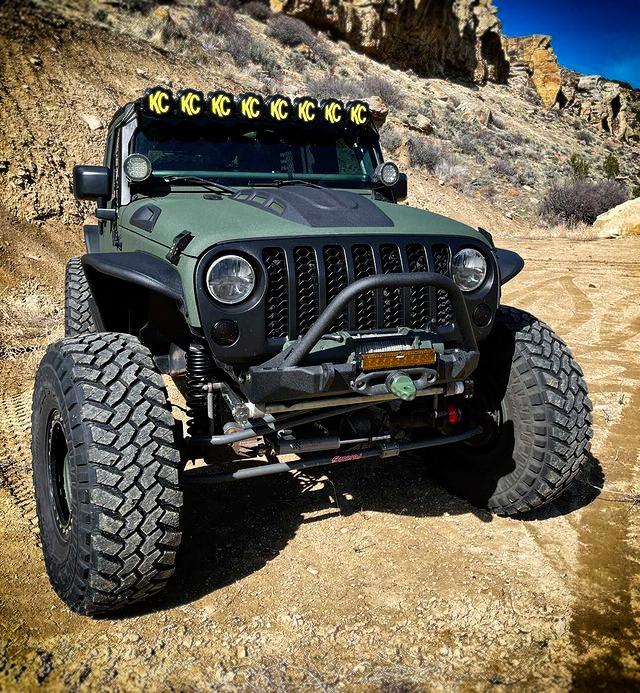

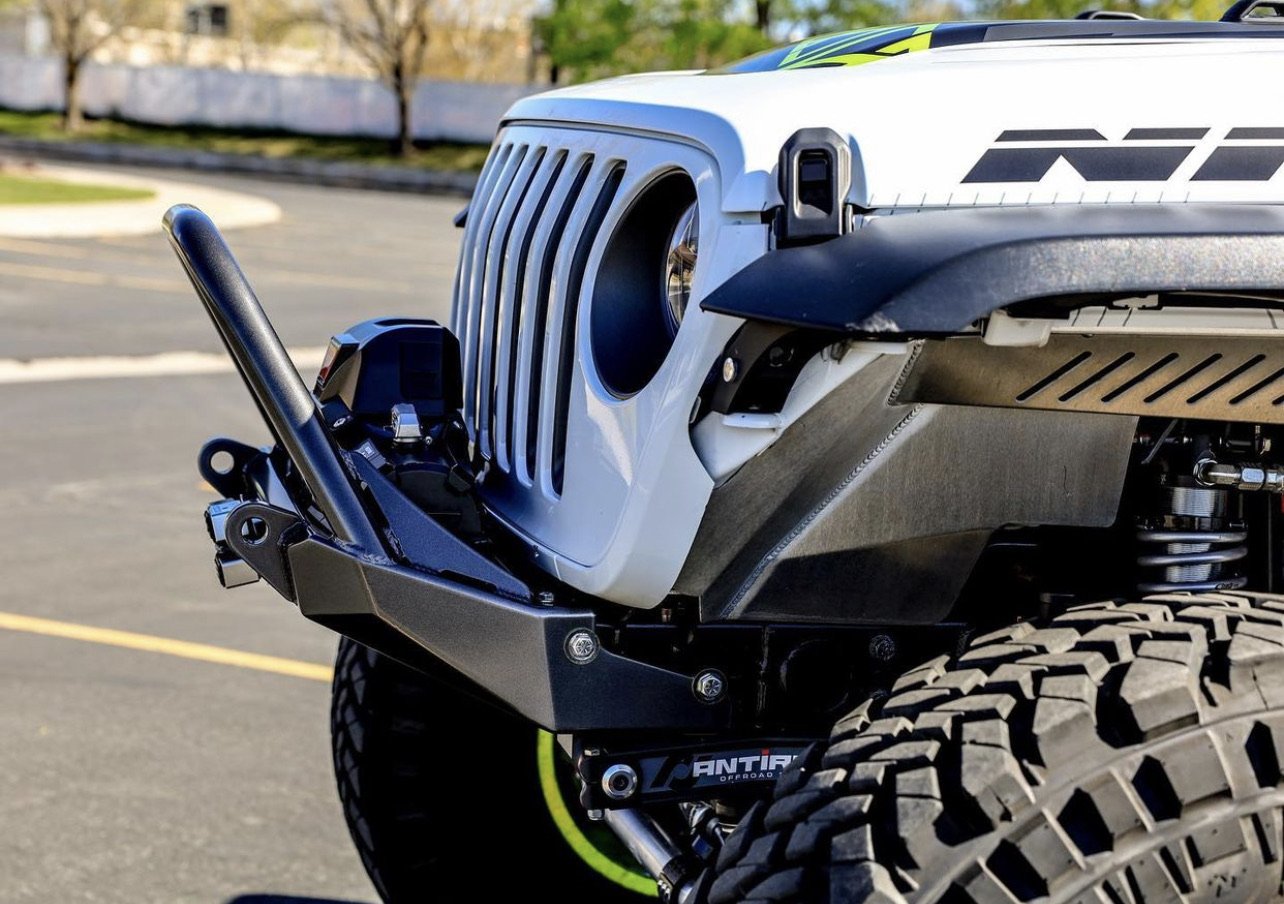

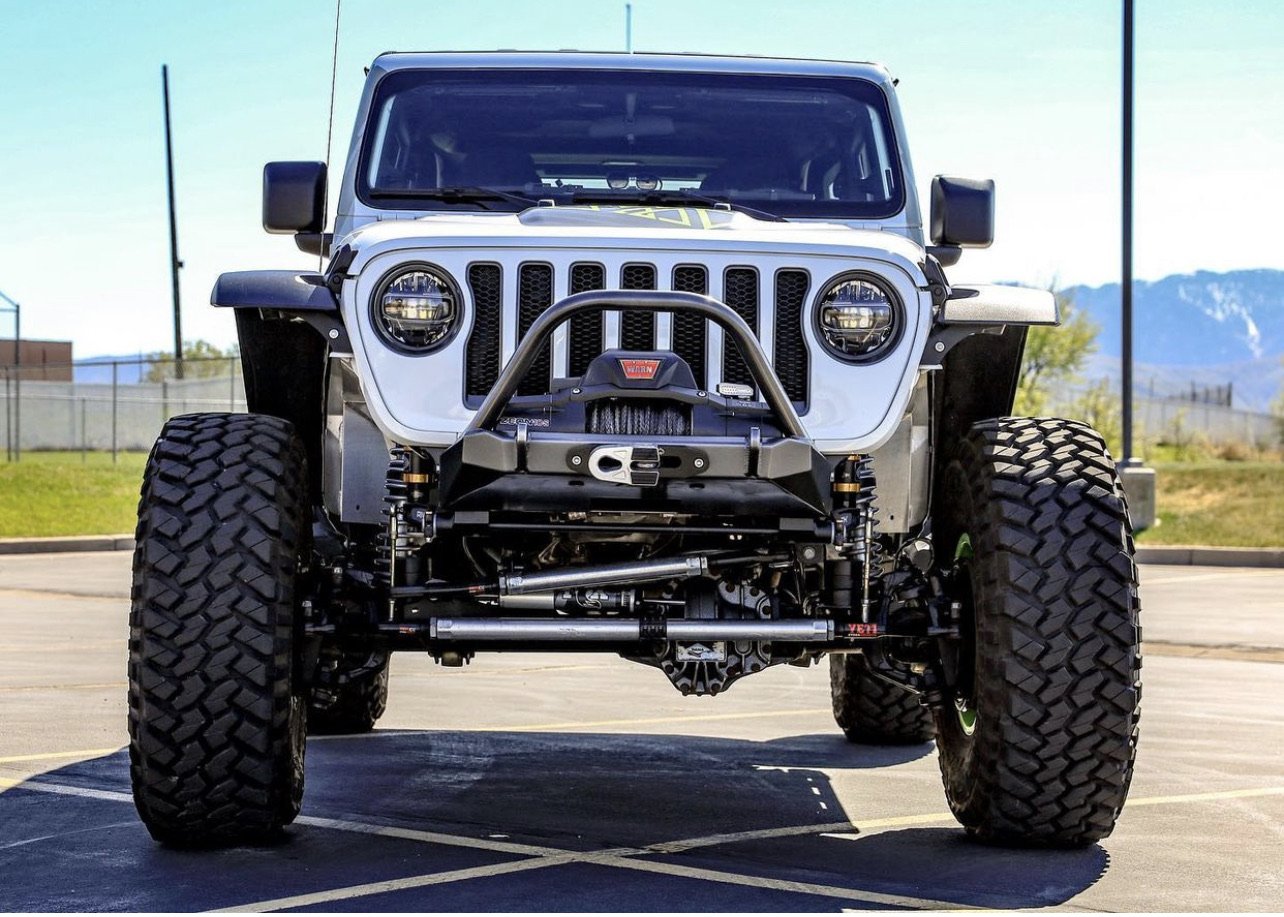

Frame Chop Front Bumpers are nothing new to the offroad community. Here at Motobilt we wanted to raise the bar a little. The Tomahawk front bumper was designed from concepts developed on the TJ Front Half Frame Kit we manufacture. Are you ready to take your Jeep JK, JL or Gladiator to the next level of style, function and capability?

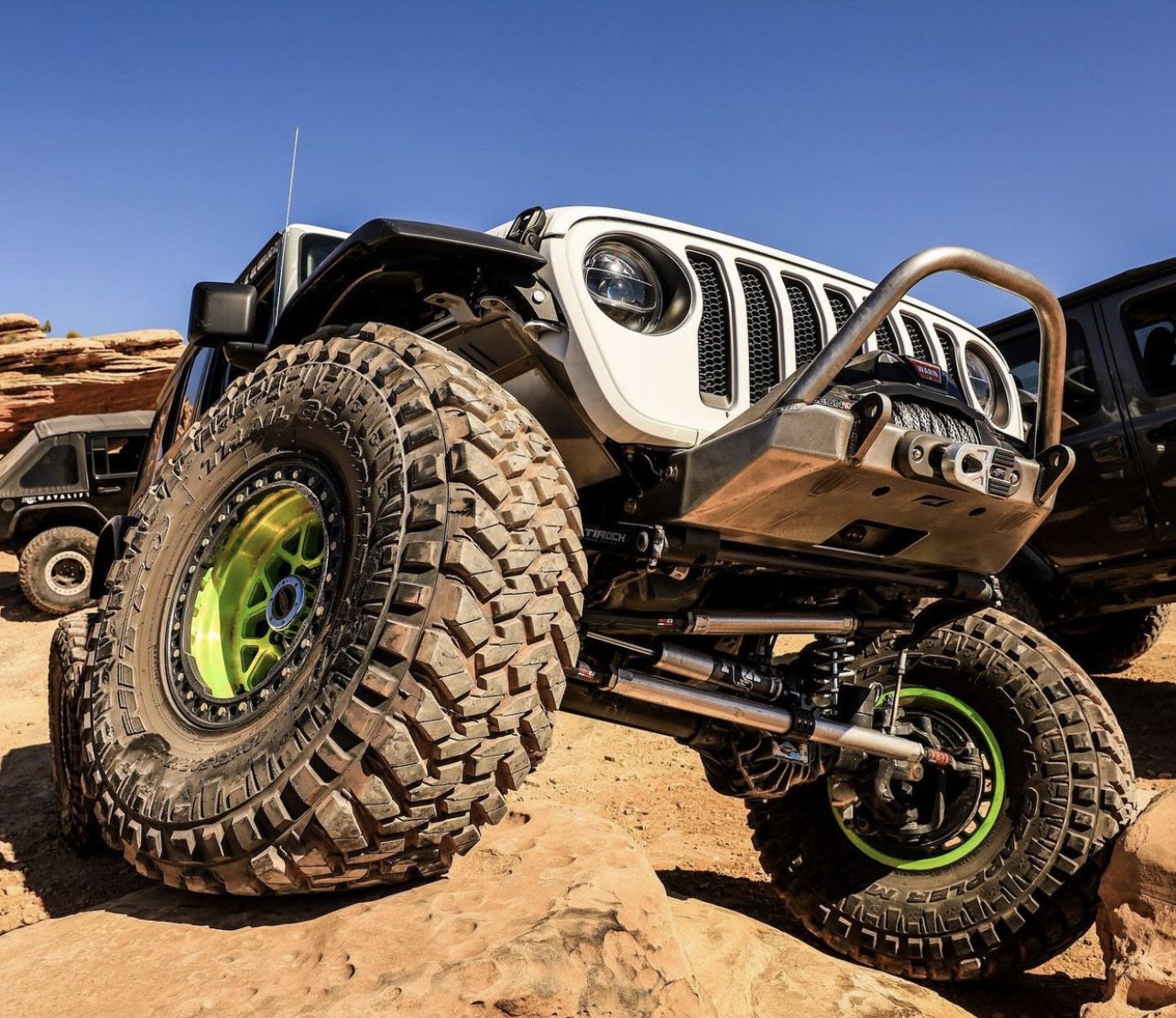

The Motobilt Tomahawk Front Winch Bumper offers many features for the avid off-roader. This original and unique front frame chop bumper design features an upswept shape that gives you more clearance and increased approach angle than any other bumper/frame chop bumper available on the market.

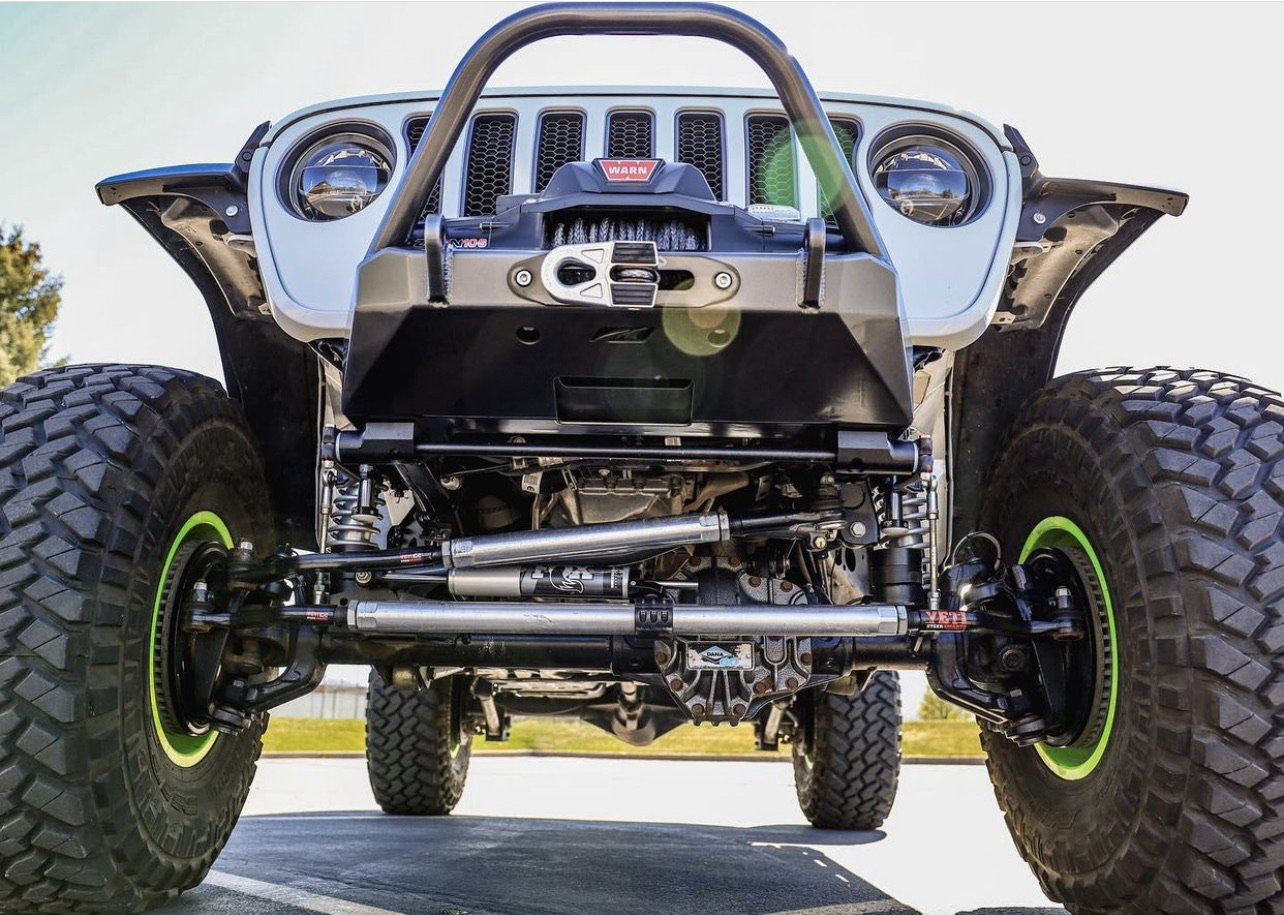

We integrated a second opening in the underside of the bumper which allows you to route your winch line directly downwards to suck down your front suspension, which in turn, lowers your center of gravity, increasing your vehicles' ability to climb steep obstacles. This concept is widely used in competitive rock crawling.
Covering all Jeep Wrangler model years from 2007 through to current, this product fits all Jeep JK (2 door), JKU (4 door), JL (2 door), JLU (4 door) and Jeep JT Gladiator models. Permanent modification to and drilling of the frame is required. Slight clearancing of the two forwardmost body mounts is required prior to installation.
A vacuum Pump Relocation Bracket is required on the Jeep JK / JKU 2012-2018 to install the Motobilt Tomahawk Frame Chop Bumper.
Note: You will not be able to return your vehicle back to factory bumpers after installation of this product.
This product ships as bare metal. The bumper can be bolted to the frame which allows you to pre-finish with paint or powder coat prior to final installation. For an even stronger connection, this product can also be welded to the factory frame.
Our detailed installation instructions include color photos and step-by-step instructions to make your installation easy and fast.
Jeep JK/JKU Swaybar Compatibility: You can reuse the factory swaybar, however, the Rubicon swaybar with the electronic disconnect is not compatible with this bumper.
This product is also compatible with the following Currie Antirock series swaybars:
Jeep JL/JLU/JT Gladiator Swaybar Compatibility: The factory swaybar can be modified to fit this product, however, the Rubicon swaybar with the electronic disconnect is not compatible with this bumper.
This product is also compatible with the following Currie Antirock series swaybars:
Winch and Fairlead Compatibility: The winch mounting pattern measures 10 inch x 4.5 inch
This product is designed to accept a variety of brand names and physical sizes of recovery winches, including the complete Warn Zeon, EVO product lines up to their largest Warn Zeon winch model, the Warn Zeon 12-S Platinum. This product is not compatible with the Warn MB8274 winch OR the CTI models. In fact, we recommend any offset winch not be used with the Tomahawk bumper.
The winch fairlead mounting pattern measures 10 inch center-to-center of the holes. This product is compatible with most Hawse Fairleads. We do not recommend using a roller fairlead with the Tomahawk Frame Chop Front Bumper.
We cannot cover all winches and variations. The bumper will fit other winches. One way of looking at it is if the larger Zeon 12k will fit a smaller M8000 would fin in the same place. We do have the winch mounting holes slotted to accommodate different shape winches.
Features:

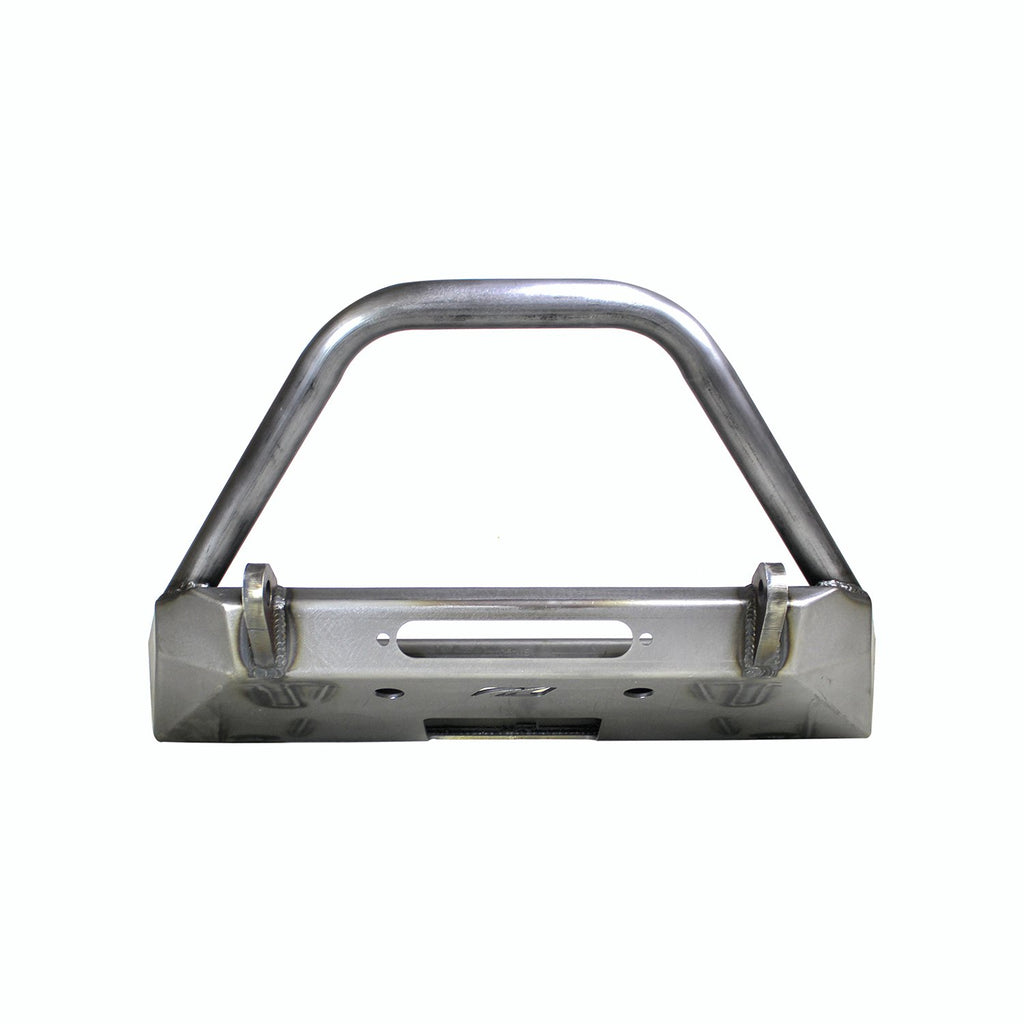

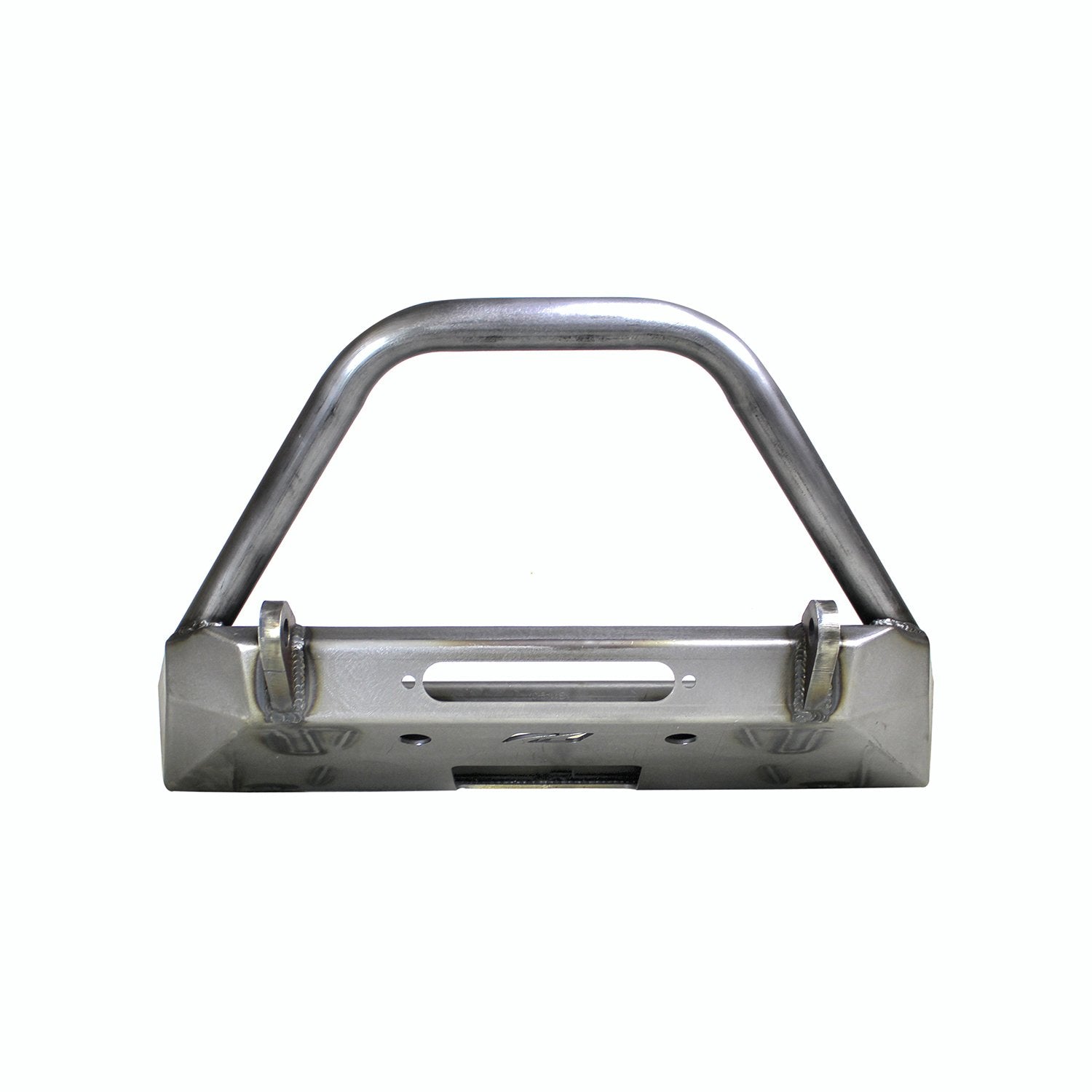

- Tomahawk Frame Chop Front Bumper w/Bull Bar for Jeep JK, JL, JT

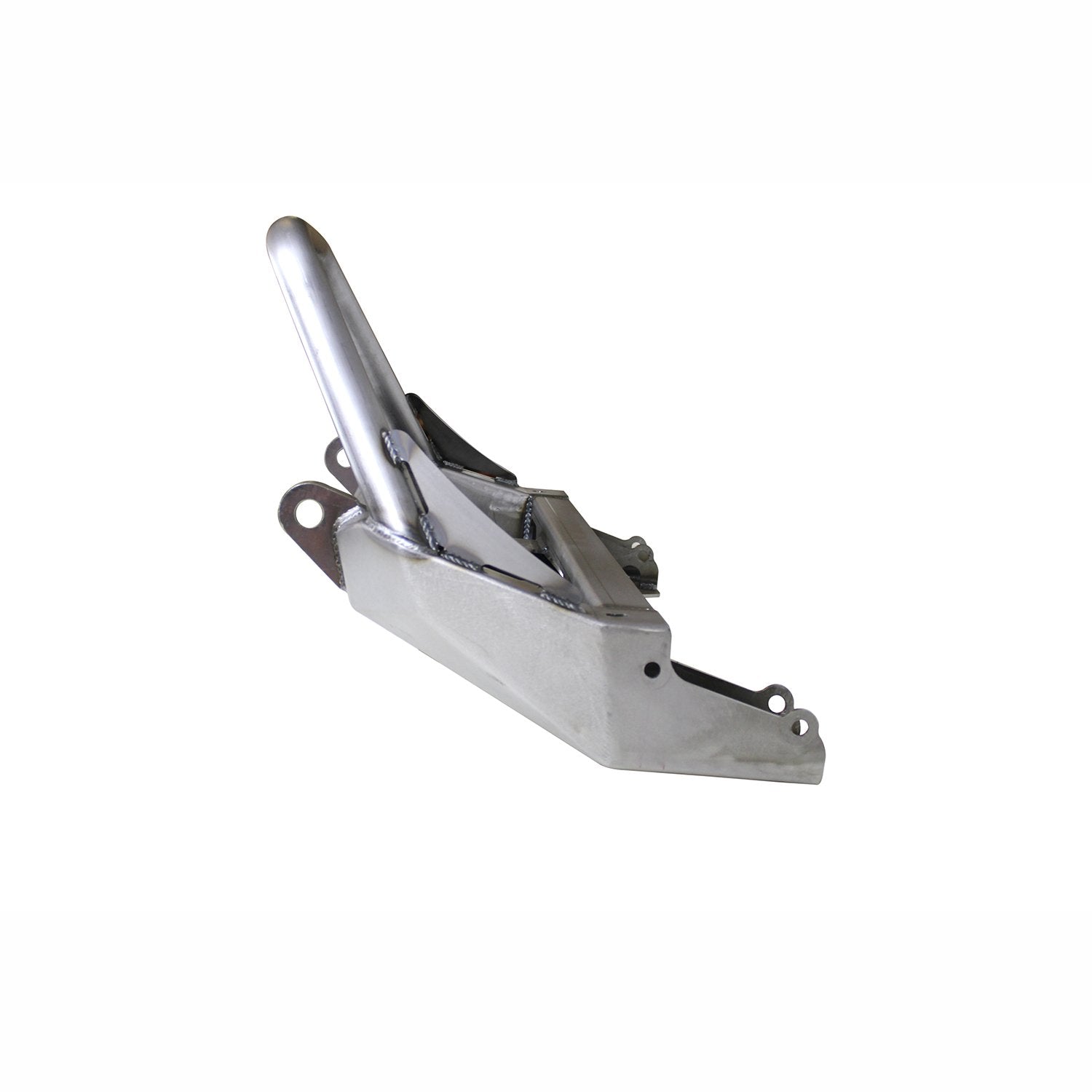

- High clearance upswept design
- Integrated winch mount
- Recessed holes for winch mounting
- Integrated fairlead mount
- Two winch routes
- Multiple swaybar mounting options
- Bolt on design (weld on optional)
- Ships as bare metal
- Weight: 62lbs
Benefits:
- Increased approach angle
- Accepts multiple winch sizes and brands
- Winch routing straight down to axle
- Recessed winch mounting bolts will not get damaged
- Swaybar compatible
- Optional Bull Bar guards winch
- Fast and easy installation
- Can be color matched to your vehicle
