    Toyota Driveshaft Flange & Universal Joint Kit

    2 sold in last 8 hours
    4 Wheeling Plus
    FL-T35040 + UJGUT21
    In stock
    Driveshafts
    $85.00
    Driveshaft Flange & Universal Joint Kit | 1510 Series | 37315-35040 Part # FL-T35040 Vehicle Fitment:1984...
    Size Guide
    $85.00
    customers are viewing this product
    Toyota Driveshaft Flange & Universal Joint Kit
    Description

    Driveshaft Flange & Universal Joint Kit | 1510 Series | 37315-35040

    Part # FL-T35040

    Vehicle Fitment:
    1984 - 1995 Toyota Pickup
    1984 - 2004 Toyota Hilux
    1995-1/2 - 2004 Toyota Tacoma
    1984 - 2002 Toyota 4Runner
    1984 - 2002 Toyota Hilux Surf
    1984 - 2002 Toyota Landcruiser Prado 70 & 90 Series
    1988 - 1991 Toyota Celica Turbo All-Trac
    1986 - 1993 Toyota Celica GT-Four
    1986 - 1993 Toyota Supra
    1993 - 1997 Toyota Previa
    1991 - 1997 Toyota Landcruiser 80 Series (Front Driveshaft)
    1996 - 1997 Lexus LX450 (Front Driveshaft)
    1998 - 2007 Toyota Landcruiser 100 Series (Front Driveshaft)
    1998 - 2007 Lexus LX470 (Front Driveshaft)
    1993 - 1998 Toyota T100
    2000 - 2004 Toyota Tundra
    2001 - 2004 Toyota Sequoia

    Vehicle Position:
    Driveshaft at differential (3rd Member)

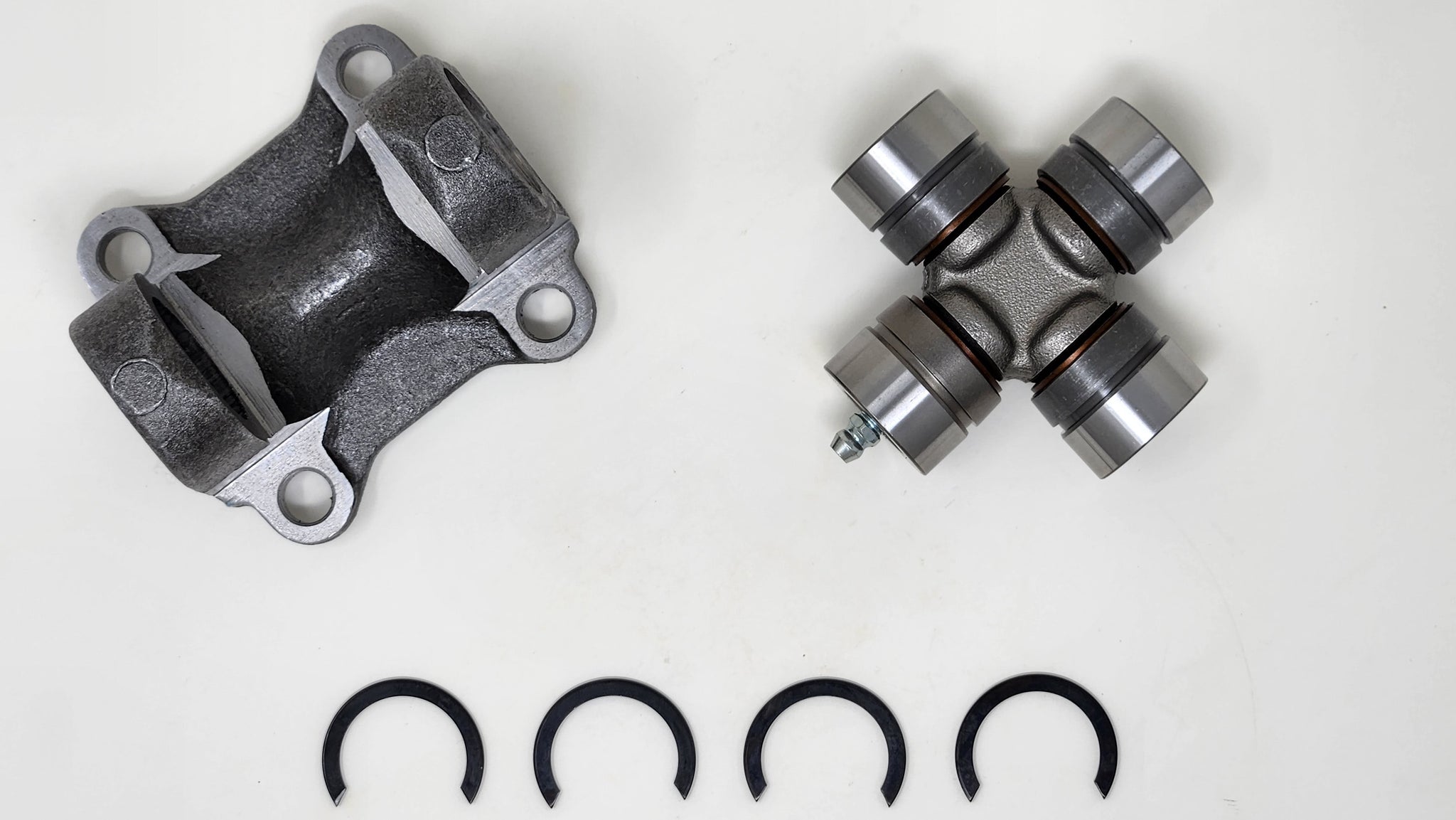

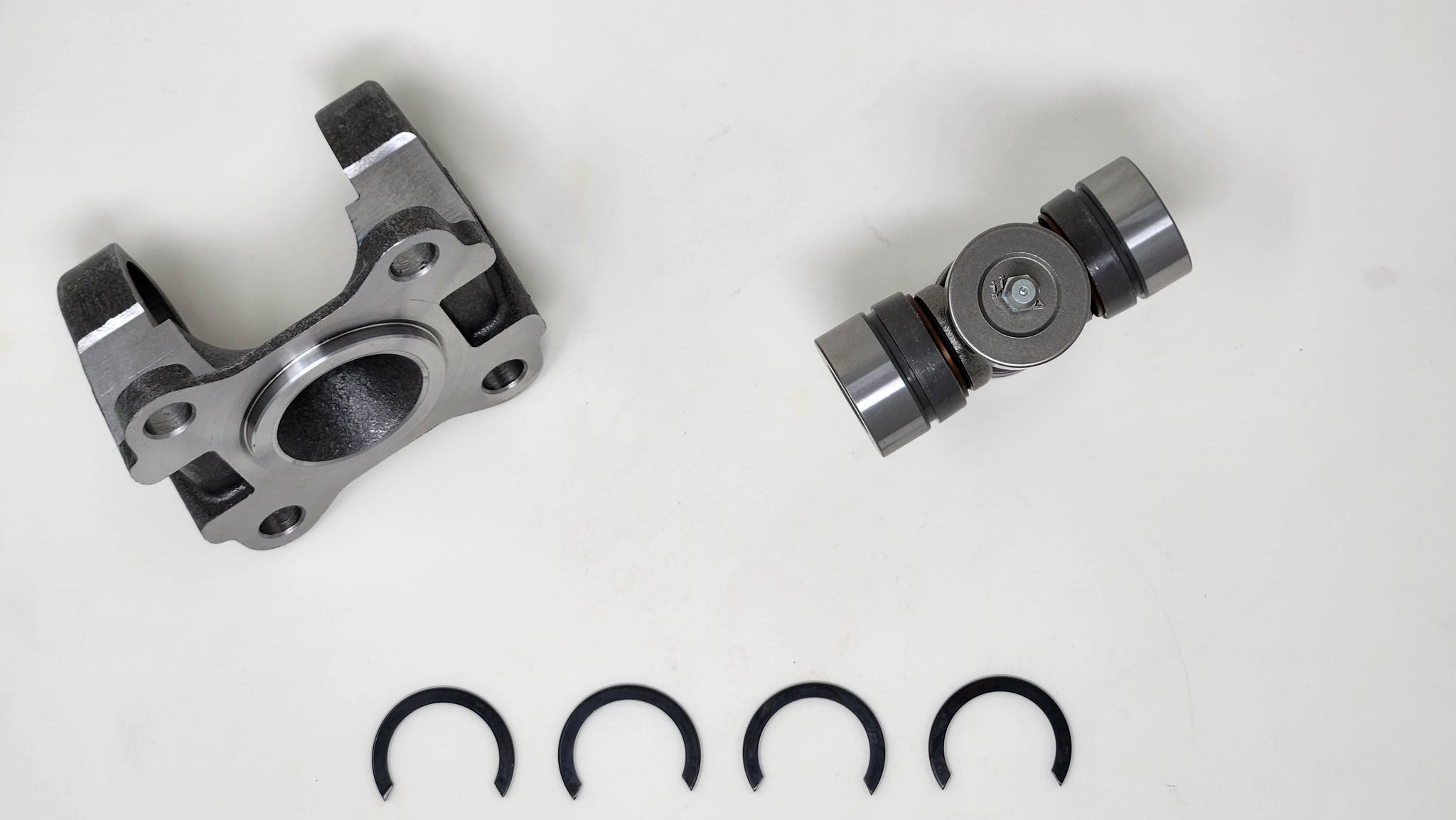

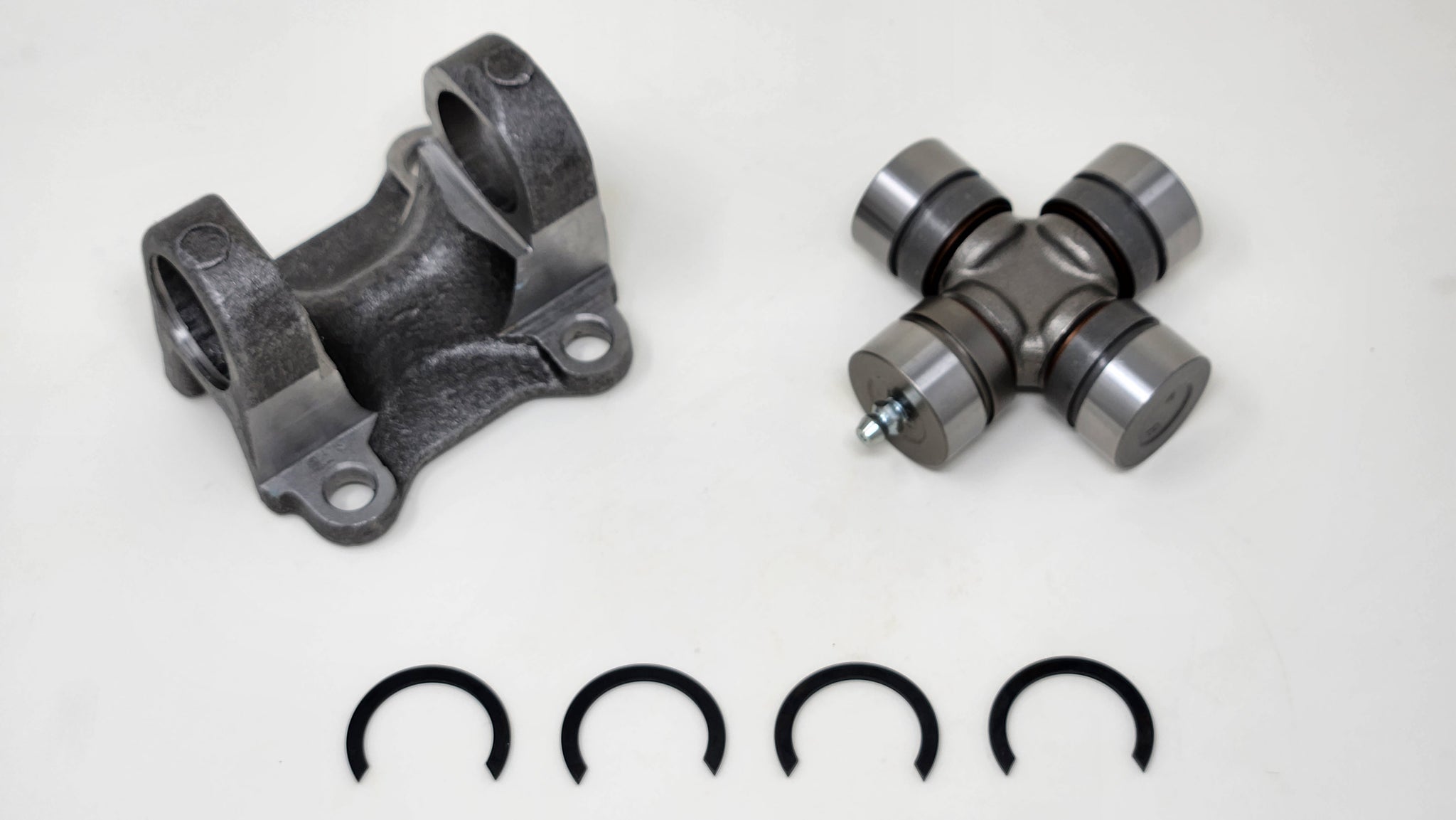

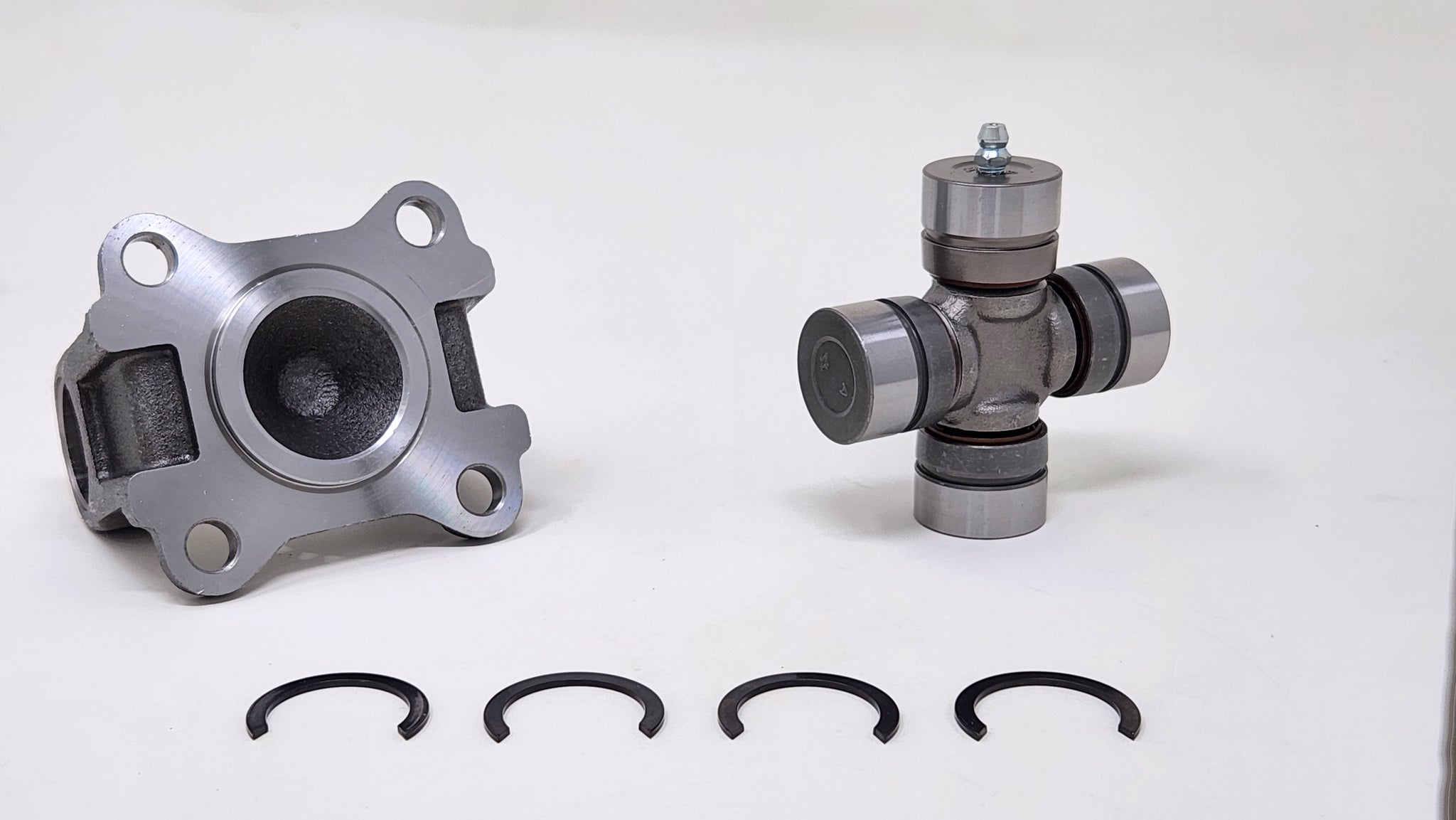

    Kit Contents:
    (1) Driveshaft Flange
    (1) 1510 Series Universal Joint

    Description:
    Replacement for OEM Toyota Flange Part #'s    37315-35040, 37315-35070
    Flange Bolt Pattern (X & Y on diagram):    60mm x 60mm or 2.36" x 2.36"
    Flange Bolt Spacing (Z on diagram):    84.8mm or 3.34"
    Flange Bolt Holes:    4 evenly spaced in square bolt pattern
    Center of U-Joint to Face (H on diagram):    44.4mm or 1.75"
    Flange Pilot Diameter:    46mm or 1.811"
    U-Joint Cap Diameter (D1 & D2 on diagram):    29mm or 1.142"
    Snap Ring Groove to Snap Ring Groove (K1 on diagram):    52mm or 2.047"
    Snap Ring Groove to Snap Ring Groove (K2 on diagram):    52mm or 2.047"
    U-Joint Style:    Inside Snap Ring (ISR) U-Joint Series:    1510
