67 Inch WMS Driver Drop Fabricated Front Axle Housing 8 Inch E-locker 3.5 OD, 1/4 Wall Trail Gear

Known for their strength, light weight, and simplicity, Toyota axles are the perfect fit for many custom off-road projects. Factory Toyota axle housings are available in a narrow range of widths which may not fit your crawler well. Trail-Gear Fabricated Axle Housings allow you to use Toyota axles in nearly any width from the narrowest of moon buggies to full-size trucks.

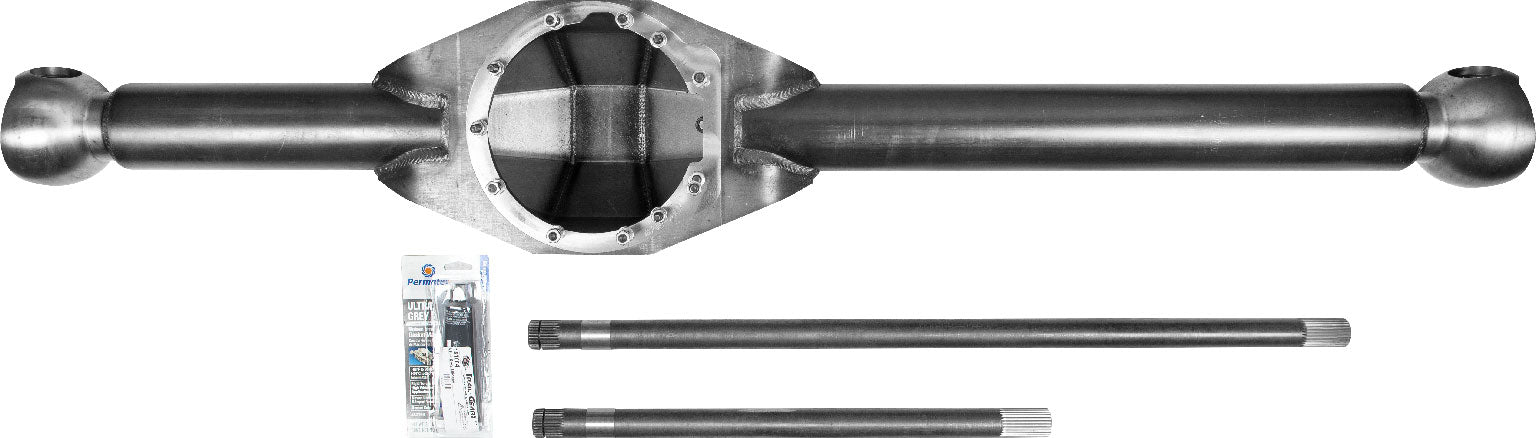

Trail-Gear's 67 inch WMS Driver Drop Fabricated Front Axle housings are available for Toyota 8 inch, 8 inch E-locker, or 8.4 inch differentials and feature all of the same specifications as our Rock Assault 9 axles. 67 inch WMS Driver Drop Fabricated Front Axle housings are made to produce a 67 inch WMS using Toyota knuckle components. Both inner shafts are also included. This housing pairs perfectly with our 2005-2015 Toyota Tacoma Rear Axle Housing.

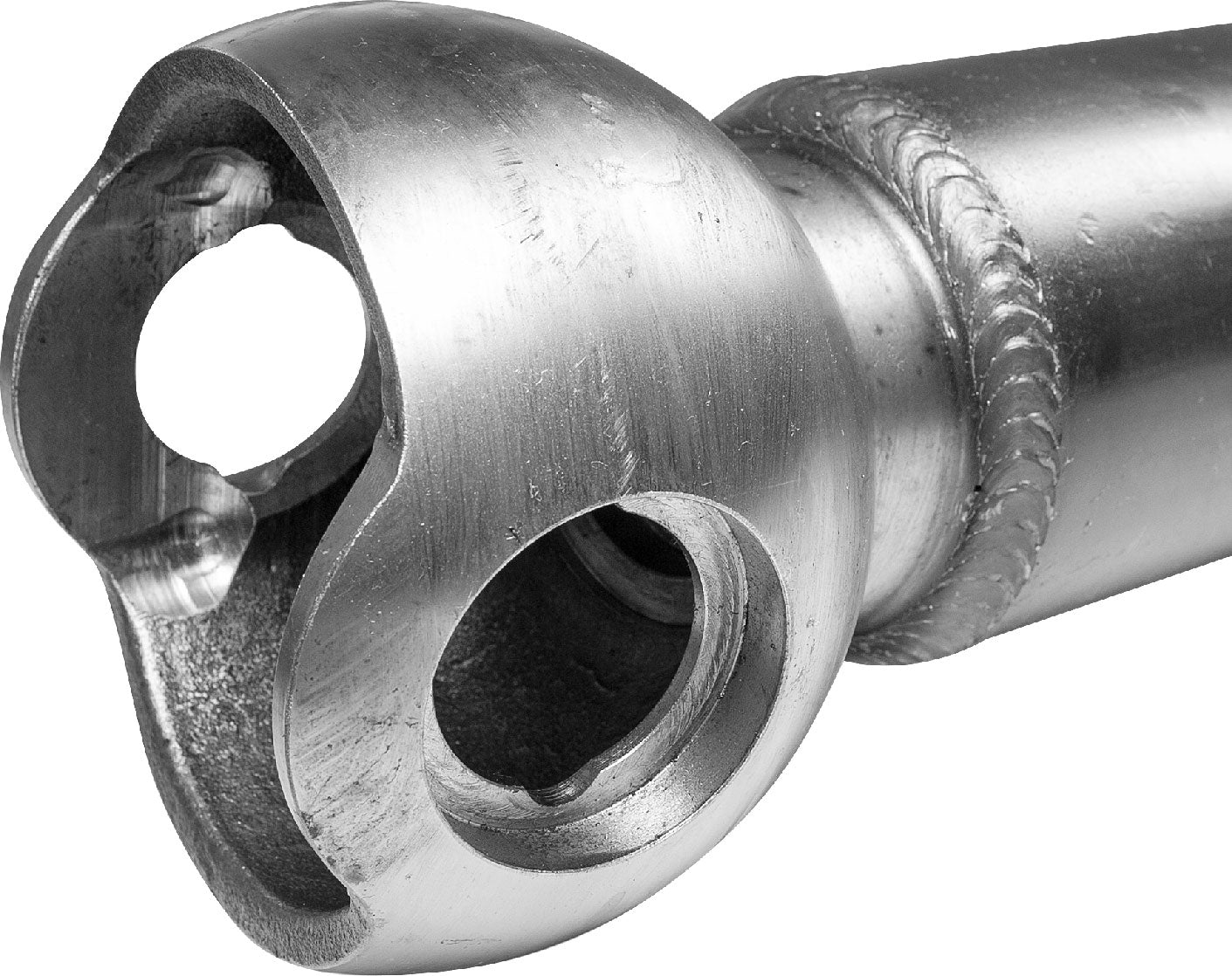

The knuckle balls included are brand new, so no need to source 30 year old knuckle balls. Our knuckle balls are forged from 1035 steel, making them much stronger than stock and eliminating closed or bent knuckle balls.

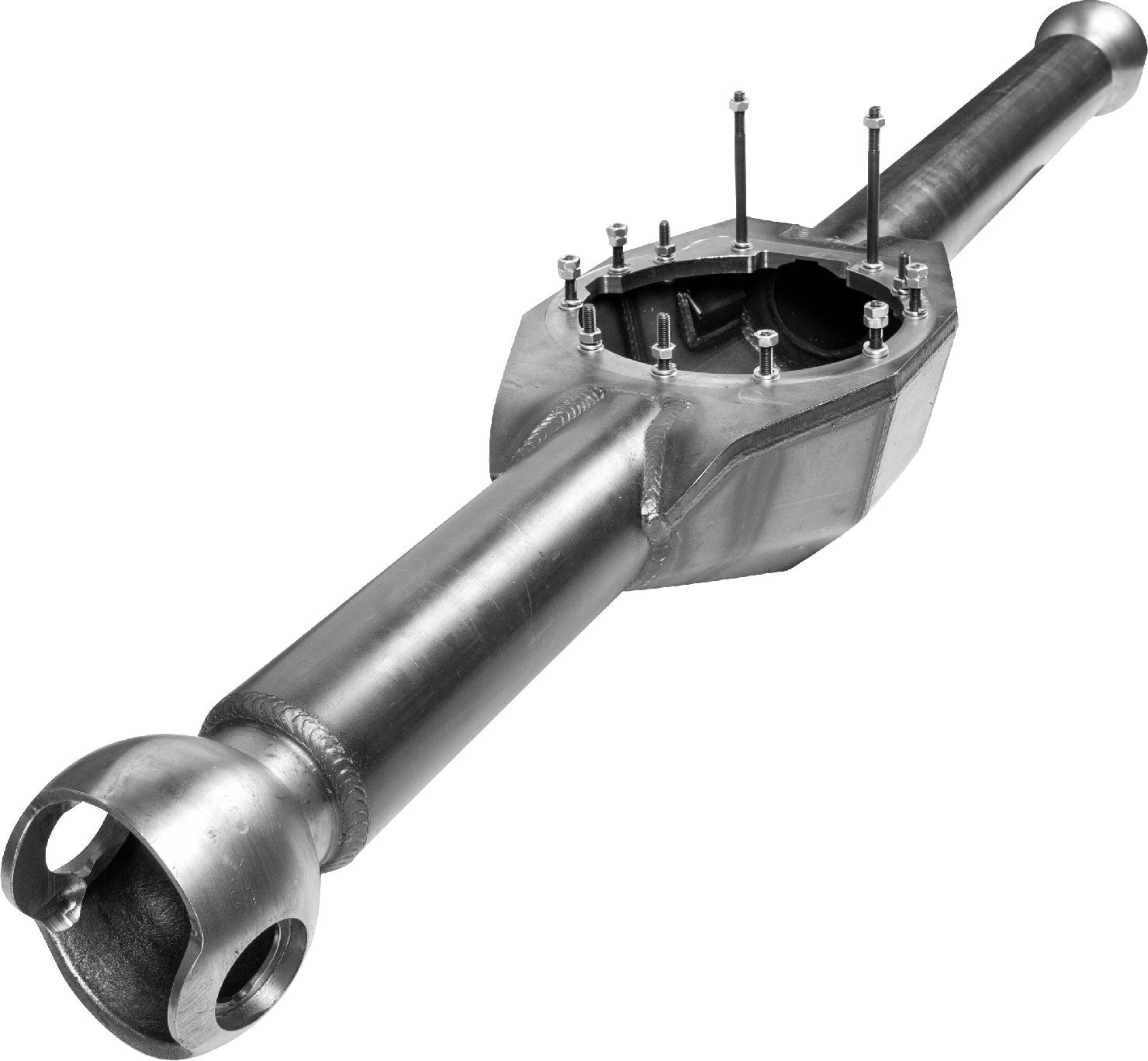

We started with a 1/4 inch thick formed shell for the center section made out of ASTM A36 steel. This is a high-strength, low alloy, structural steel plate with a minimum yield strength of 36,000 psi! All of this is attached to an equally strong 1/2 inch thick faceplate for anchoring the 1/4 inch wall 3.5 inch OD DOM axle tubes.

The axle tubes are secured by the industry's first 3-point attachment system, giving the tubes superior support and engagement into the center section. We also face the center section to ensure your differential mounts flush against the axle housing to prevent leaks.
Key Features:

• 67 Inch WMS Driver Drop Fabricated Front Axle Housing - 8 Inch E-locker, 3.5 OD, 1/4 Wall
• 1/4 inch CNC formed center section
• 1/2 inch Formed faceplate
• DOM axle tube
• 3-point attachment system
• Faceplate is machined after welding to ensure that the differential mounts flush
• Accepts Toyota 8 inch, Toyota 8 inch e-locker or Toyota 8.4 inch differential
• Made in USA
• Ships bare
• Includes brand new knuckle balls
• Produces 67 inch WMS axle with 6.5 inch offset Driver Drop.

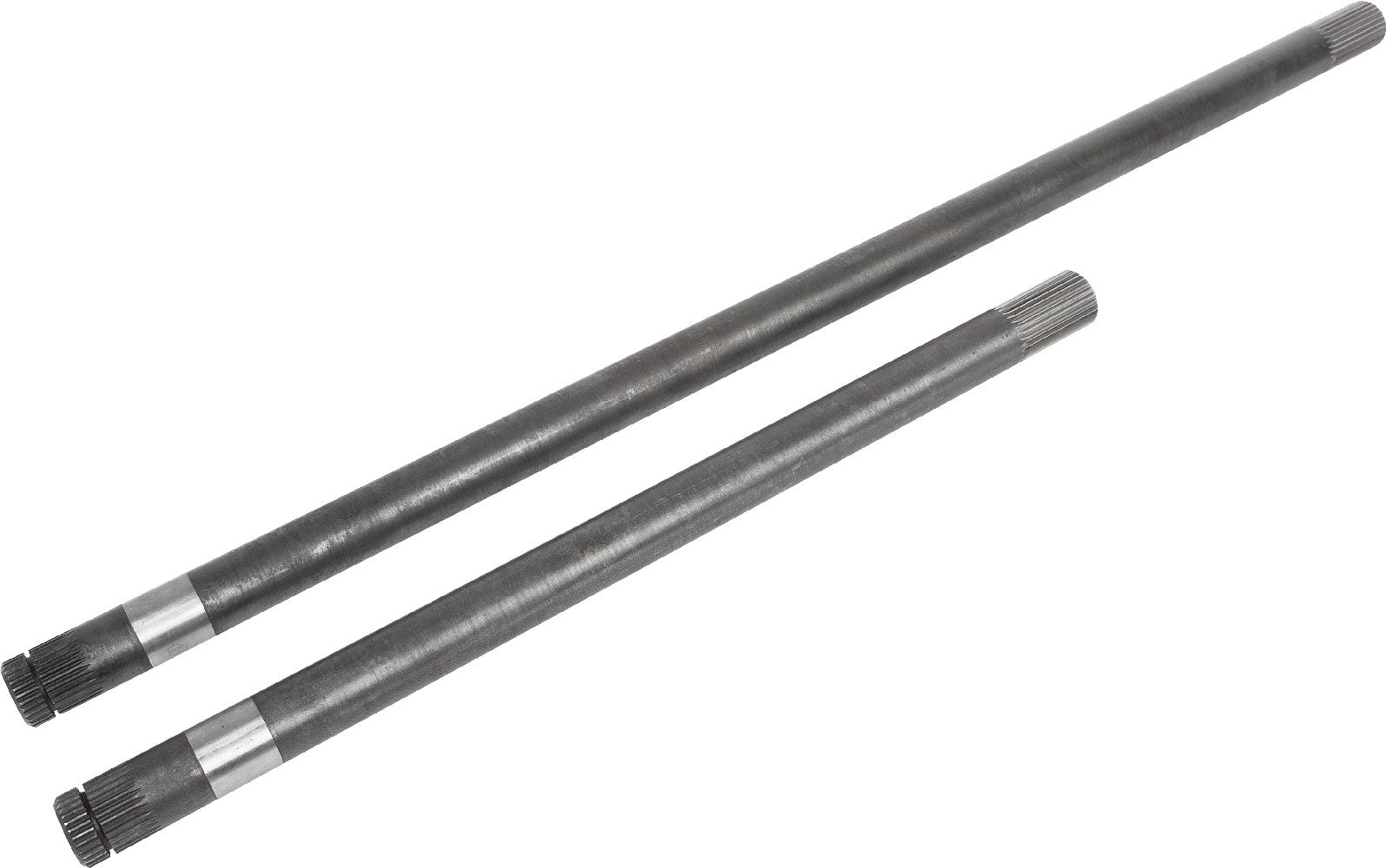

• Inner shafts are included.
• Axle: 8 Inch
• Locker: E-Locker
• Sold As: Kit
