BDS 6 in. Suspension Lift with Fox Performance Series Shocks & Struts

2 vendido en el último 8 horas

Vendedor: BDS Suspension

SKU: BLDV_BDS1801FSR

disponibilidad: Agotado

Código de producto: Suspension Lift Kit

$2,961.71

BDS 6 in. Suspension Lift with Fox Performance Series Shocks & Struts | BDS1801FSR | 2019...

Cantidad

Subtotal: $2,961.71

La cantidad debe ser 1 o más

283 Los clientes están viendo este producto.

BDS 6 in. Suspension Lift with Fox Performance Series Shocks & Struts

Descripción
Envío + Devoluciones

Descripción

BDS 6 in. Suspension Lift with Fox Performance Series Shocks & Struts | BDS1801FSR | 2019 - 2026 Chevrolet / GMC / Silverado / Sierra 1500 Gas

Manufacturer: BDS Suspension (Made in USA)

Part # BDS1801FSR

Vehicle Fitment:
2019 - 2026 Chevrolet Silverado 1500 w/o Trail Boss or ZR2 Package
2019 - 2026 GMC Sierra 1500 w/o AT4 or AT4X Package

Click HERE to download installation guide

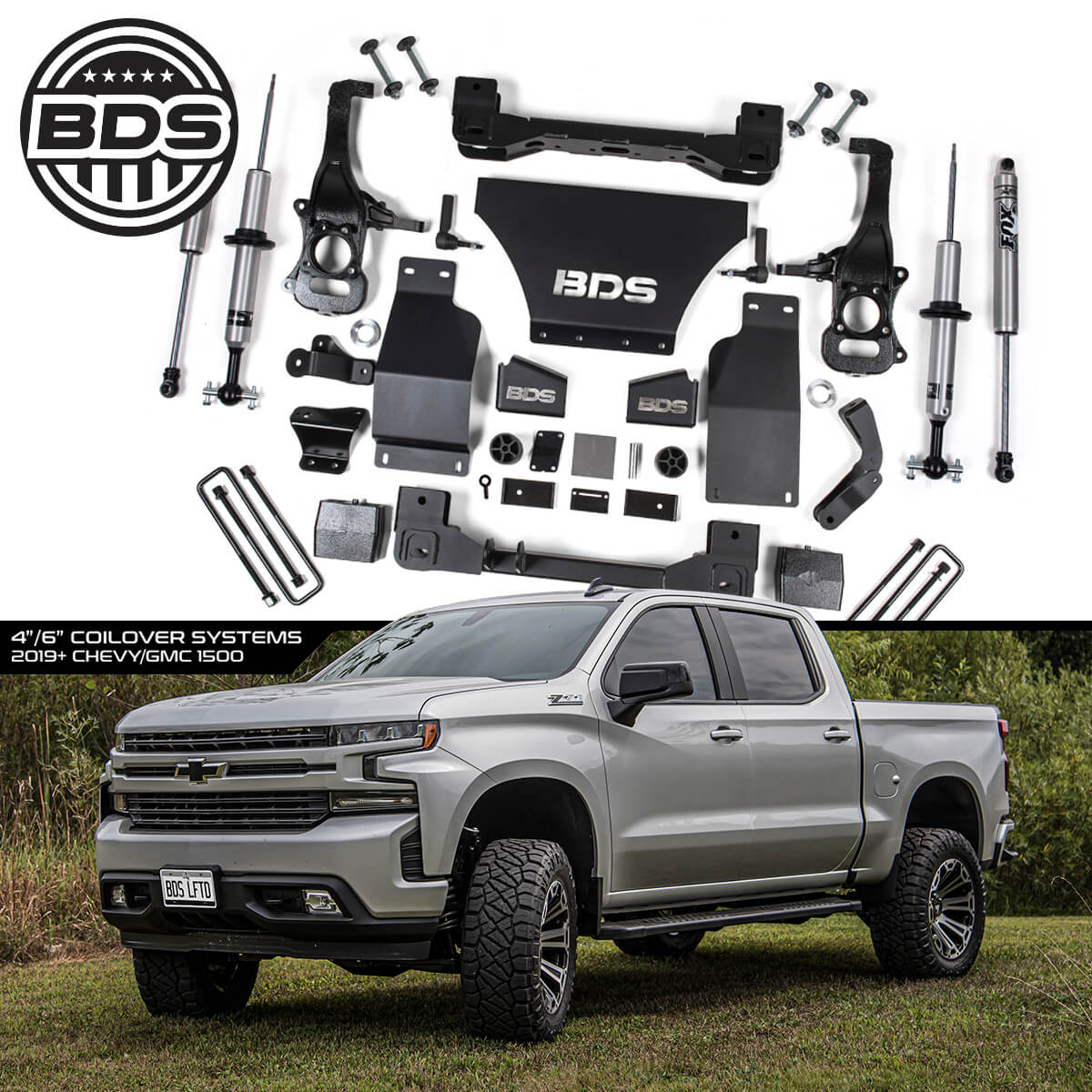

Overview:

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

High clearance crossmember design maximizes ground clearance
Robust steering knuckles maintain ESC system compliance
High-strength replacement upper control arms provide durability and serviceability
HD skid plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 6.25 in. Backspace
37 x 12.5 with 20 x 9 and 6.25 in. Backspace

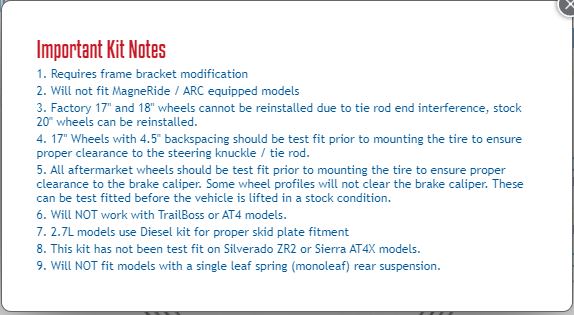

Important Notes:

Requires frame bracket modification.
Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled
17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod
All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
Actual ride height on coilover kits is closer to 6.5'' of lift
If equipped with a mono-leaf rear spring please use part #UBT4064 (Qty 4 required).
2.7L Turbo models must use Diesel kit for proper skid plate fitment due to clearance issue with Intercooler pipe
Will not fit models equipped with ARC
