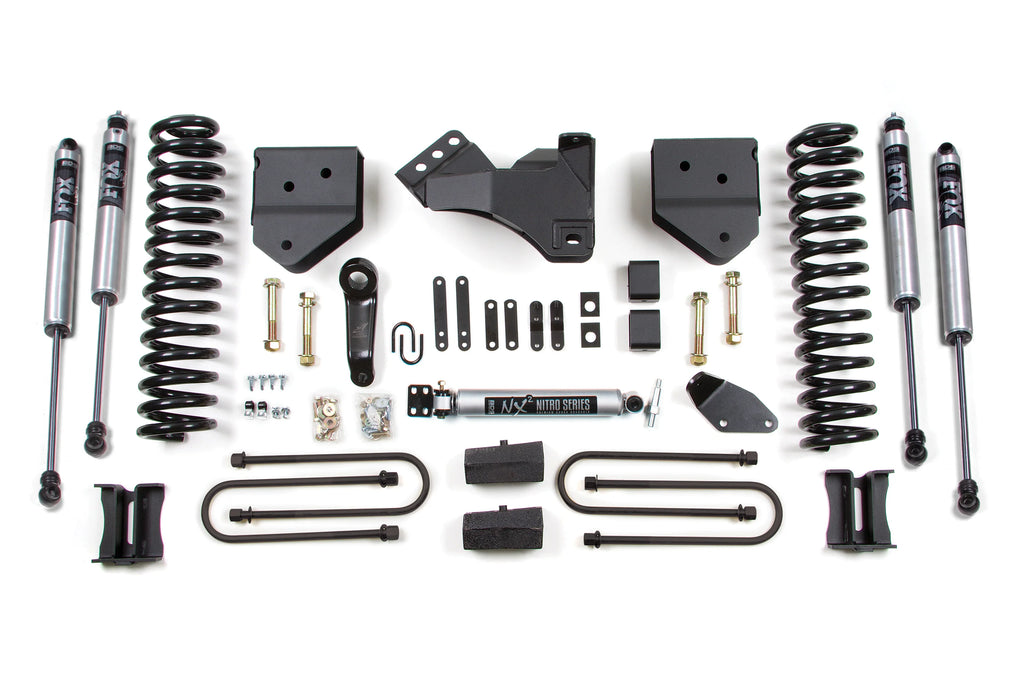

    BDS 4in. Suspension Lift Kit w/ Fox Performance Series Shocks

    BDS Suspension
    BLDV_BDS344FS
    Muchos en stock
    Suspension Lift Kit
    $1,956.60
    BDS 4in. Suspension Lift Kit w/ Fox Performance Series Shocks | BDS344FS | 2005 - 2007...
    Guia de tallas
    $1,956.60
    Los clientes están viendo este producto.
    BDS 4in. Suspension Lift Kit w/ Fox Performance Series Shocks
    Descripción

    BDS 4in. Suspension Lift Kit w/ Fox Performance Series Shocks | BDS344FS | 2005 - 2007 Ford Superduty F250 / F350 with Factory Overload Springs

    Overview

    Ford Superduty F250 / F350 with Factory Overload Springs

    Click HERE to access the kit for use without Factory Overload Springs

    Increase ground clearance on your 2005-2007 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

    Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned FOX Performance Series 2.0 shocks.

    In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of  FOX Performance Series 2.0 shocks.



    Pro-Ride Coil Springs

    A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

    Steering Correction

    To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

    Features & Benefits

    • Easy, 100% Bolt-on installation
    • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
    • Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
    • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
    • Steel lift blocks with built-in bump stop provide level stance from front to rear
    • FOX 2.0 Performance Series shocks for maximum performance on and off-road

    Recommended Tires & Wheels

    (Trimming may be required)

    • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
    • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
    • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

    Rear Lift Option

    Block Kit

    • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
    • Blocks made of steel for high strength.
    • Designed to provide correct pinion angles.

    Shock Option

    FOX 2.0 Performance Series

    • 2-inch Impact extruded aluminum body
    • Internal floating piston (IFP) monotube design
    • CNC machined 6061-T6 aluminum mounting ends
    • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
    • Race-developed high-flow piston design
    • Application-specific valving to maximize performance
    • Long-lasting clear anodized finish

    Click HERE to download installation guide 1

    Click HERE to download installation guide 2

    Important Notes

    1. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
    2. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
    3. 5" Block included to replace factory block.

    Specifications

    • Front Lift Method : Coil Spring
    • Front Lift Height : 4"
    • Rear Lift Method : Block
    • Rear Lift Height : 5"
    • Shocks Included : Yes
    • Lift Height : 4-5.5"
