    BDS Suspension 6in. Lift Kit

    BDS Suspension
    BLDV_BDS303FS
    Muchos en stock
    Suspension Lift Kit
    $2,572.29
    BDS Suspension 6in. Lift Kit | BDS303FS | 2000 - 2005 Ford Excursion Click HERE to...
    Guia de tallas
    $2,572.29
    Los clientes están viendo este producto.
    BDS Suspension 6in. Lift Kit
    Descripción

    BDS Suspension 6in. Lift Kit | BDS303FS | 2000 - 2005 Ford Excursion

    Click HERE to download installation guide 1

    Click HERE to download installation guide 2

    Update the style of your 2000-2005 Ford Excursion with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

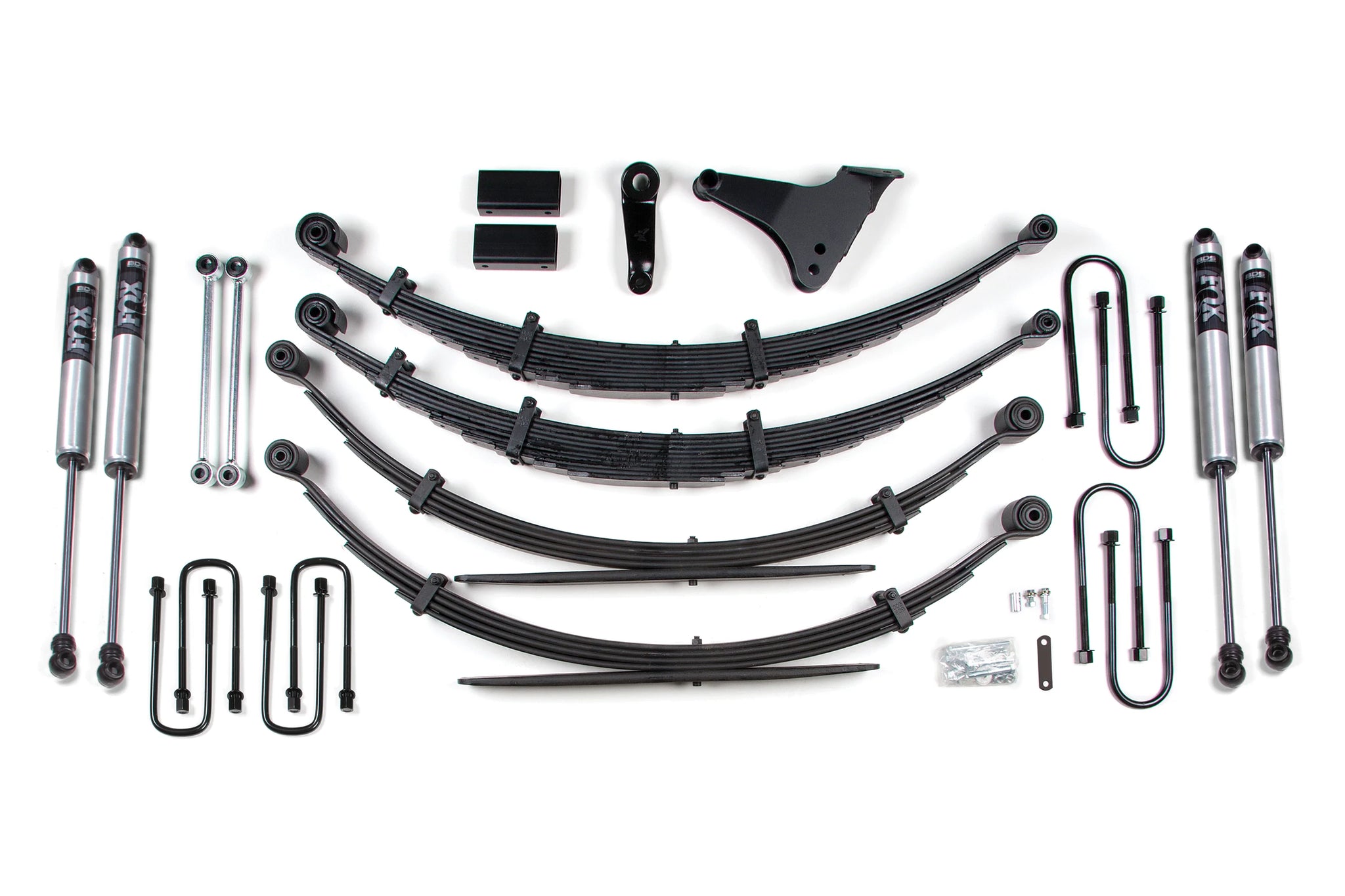

    Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

    In the rear the base kit utilizes replacement Glide-Ride full leaf spring packs, u-bolts and a matching set of FOX Performance shocks.

    Glide-Ride Leaf Springs

    Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

    Steering Correction

    To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

    Features & Benefits

    • Easy, 100% Bolt-on installation
    • Glideride leaf springs to provide full lift height and increased capacity
    • Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
    • Cast steel blocks provide level stance from front to rear
    • Standard NX2 Nitro shocks with vehicle-specific valving for better control
    • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

    Recommended Tires & Wheels

    (Trimming may be required)

    • 35 x 12.5 with 16 x 8 and 4 in. Backspace

    Shock Option

    FOX 2.0 Performance Series

    • 2-inch Impact extruded aluminum body
    • Internal floating piston (IFP) monotube design
    • CNC machined 6061-T6 aluminum mounting ends
    • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
    • Race-developed high-flow piston design
    • Application-specific valving to maximize performance
    • Long-lasting clear anodized finish

    Important Notes

    1. Remove factory block.
    2. Models with rear CV driveshaft may experience drive line vibration.
    3. Due to OE variances, you may need to change the rear block to level the truck.
    4. #003202, #003402, #003602, #003609, #003802 & #003809 come with rubber bushings installed.
