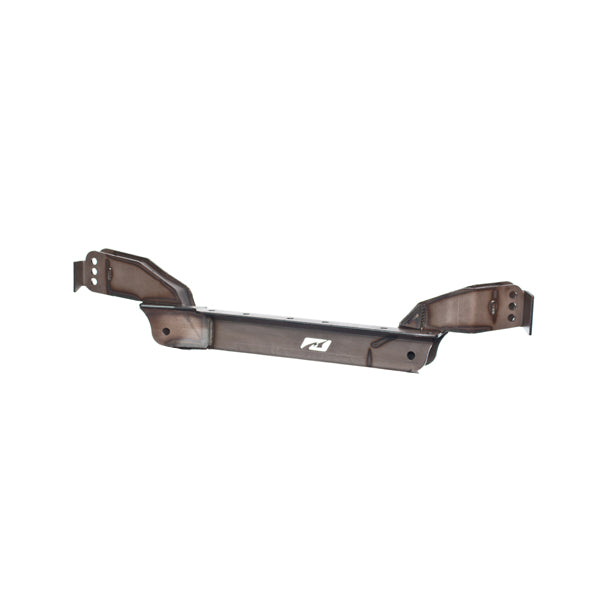

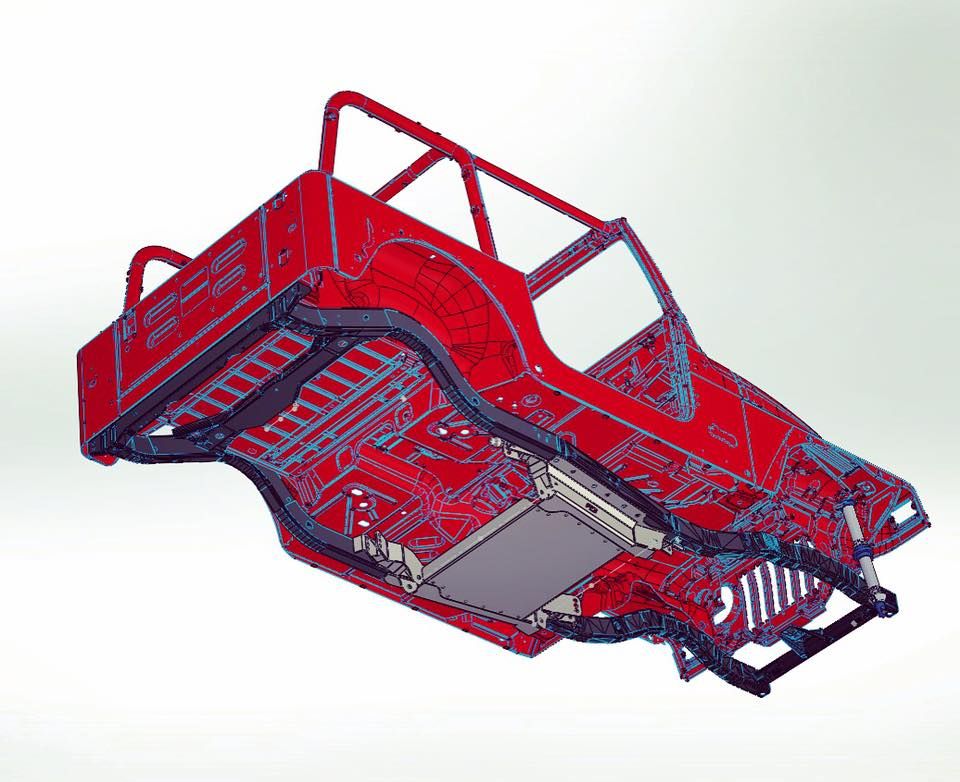

This is the new 4 link assembly for the frame side on a Jeep TJ. Building high quality fabricated products for offroad vehicles is the mission. The Motobilt Jeep TJ Four Link Suspension Kit consists of an assembly that mounts onto the frame and houses both the upper and lower links for the front and rear 4 link suspension. This kit was designed to make it easier to install 4 linked suspension by taking out the guess work.

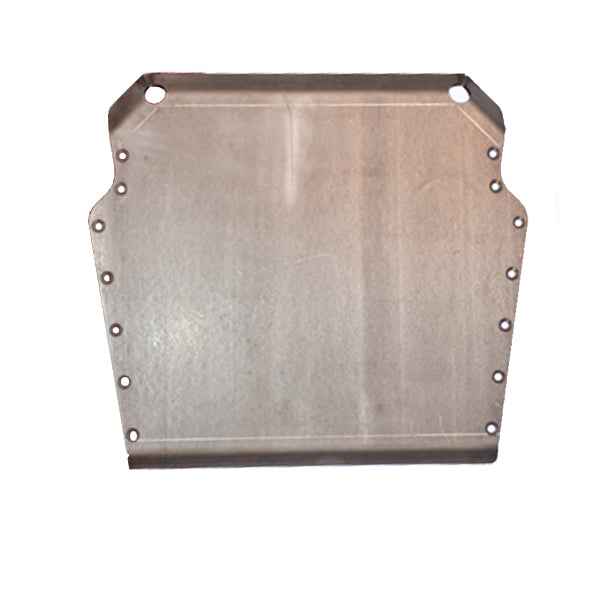

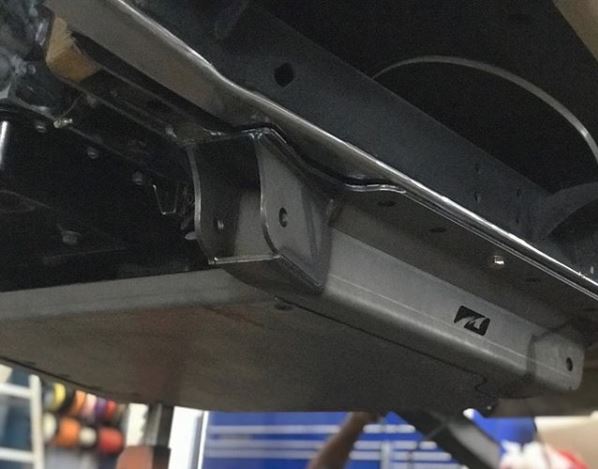

The kit is fabricated from high strength CNC laser cut steel plate. The main bodies where the links bolt in and the skid are all 1/4 inch steel plate for ultimate strength. Some of the secondary plates to box in the link mounts and internal gusseting are 3/16 inch steel plate. The design comes to you fully welded and ready to install into the Jeep. Once receiving the kit you will be required to weld the parts in place. The parts are located very easily with the factory skid plate mounting holes.
Features:

• Jeep TJ Four Link Suspension Kit
• Main bodies 1/4 inch steel plate
• Secondary plates 3/16 inch steel plate
• Sold as kit

Note:

• Required welding the parts in place
